Swan Pro-1002 + Pro-1512s Line Array Speakers
$ -
Postage : $0.00
Public Broadcasting Commercial & background system Professional Speaker System
Pro-1002 and Pro-1512s are newly launched line array speaker systems of Swans brand to solve the sound pressure level attenuation caused by long-distance transmission of sound. Through the correction of the wave front, it is close to the plane wave transmission, so as to solve the problem of long-distance transmission. Through the special hanging system, multiple speakers can be beneficially connected, forming a powerful line sound source, continuous sound pressure level High, dynamic, good transient.
This system is especially suitable for various basketball halls, assembly halls, auditoriums, theaters, multi-functional conference rooms, etc. It is also equipped with hangers, latches, various connectors, etc., which are convenient for system combination and hoisting.
Product Size
Product Parameters

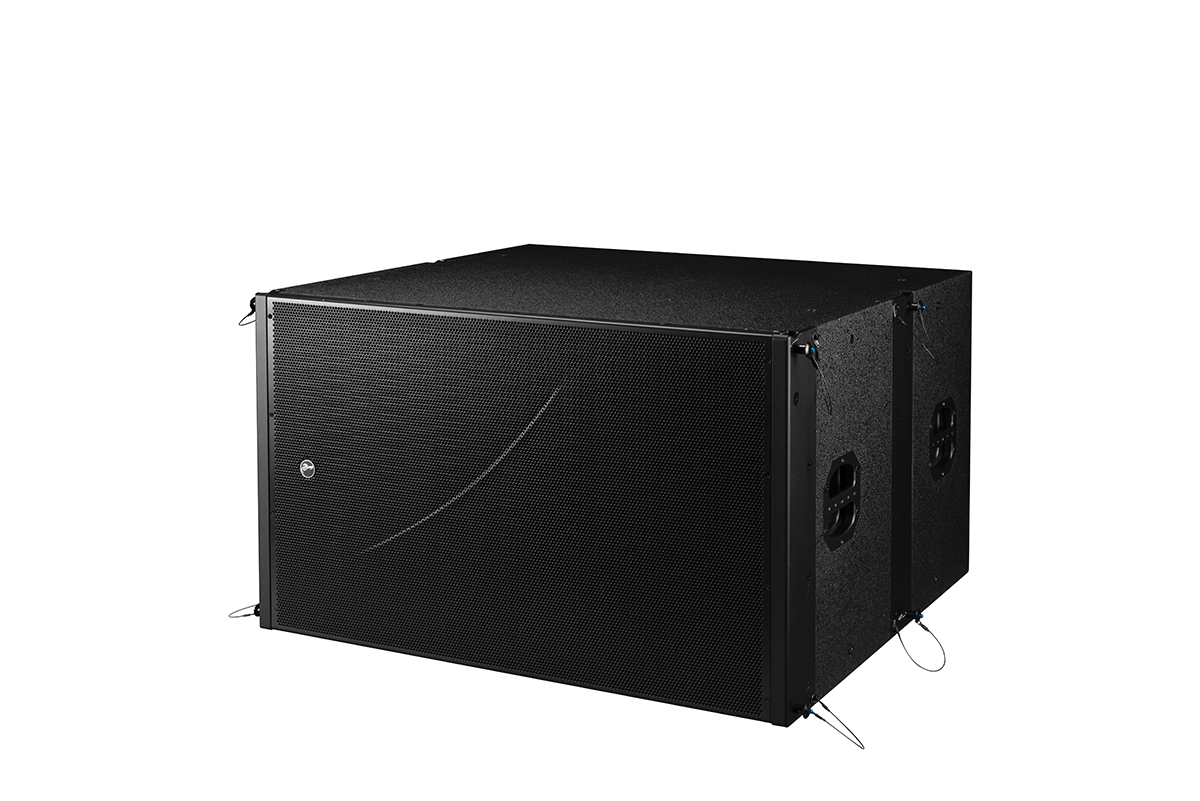

Model
Pro-1512S
Frequency
range
33Hz~350Hz
Rated
input power
1000W
Sensitivity
100dB (1w/1m)
Max SPL
136dB
Rated
impedance
4Ω
Woofer
2x15"
(75mm voice coil)
Spread
angle
Full directive
Install
Hanger
Size（WXHXD）
950x588x828mm
N.W.
84.5kg

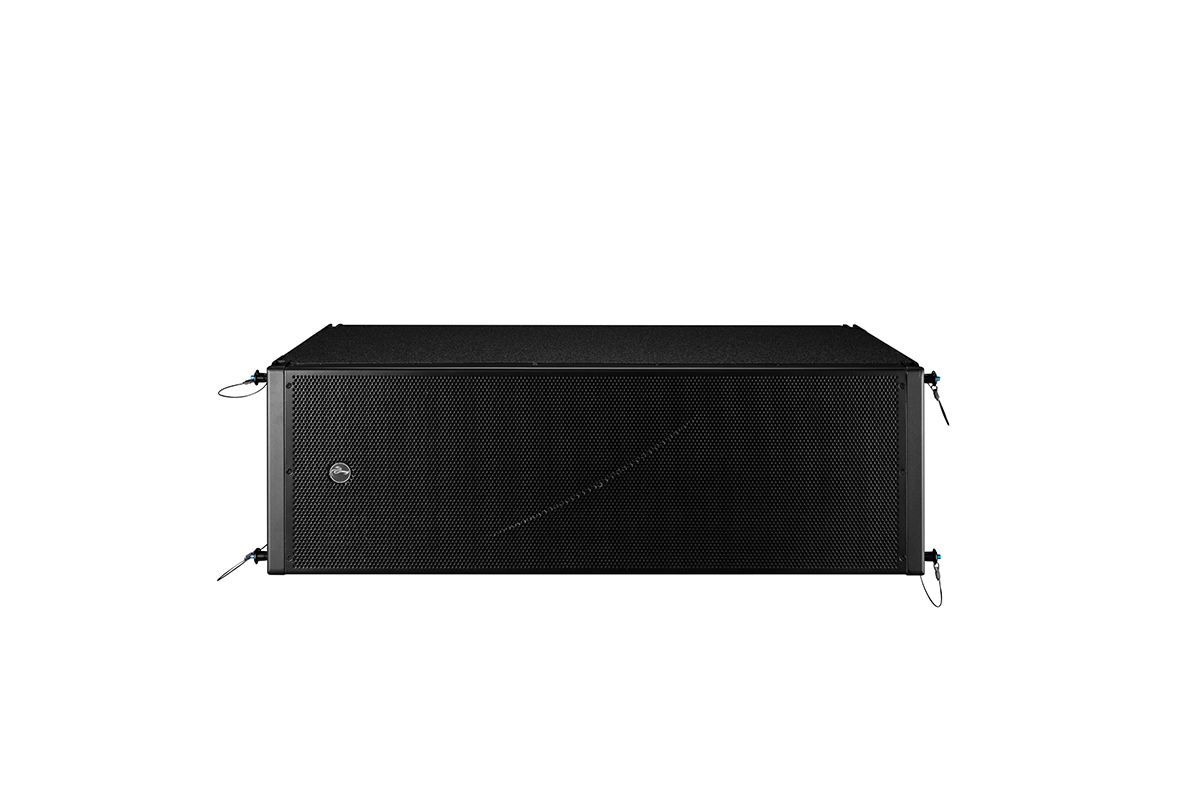

Model
Pro-1002
Product portfolio
Bass :1* 10”（φ65 mm）woofer; 8P input seat1+/1-
Bass :1* 10”（φ65 mm）woofer; 8P input seat2+/2-
Treble:1*3”（ φ75mm）tweeter; 8P input seat3+/3-
Forming board: birch plywood / outer protective
layer: environmental protection hardened black dot paint
Hanging parts: special hanging system/front
protection: sprayed and hardened steel mesh with rounded holes
Frequency（±3dB）
LF: 58Hz-3kHz /
58Hz-3kHz HF: 850Hz-20kHz
Sensitivity（axi1m/1W）
LF:
98dB/98dB HF: 112dB
Input
impedance
LF: 16Ω / HF:
8Ω
Contiual
power
LF:250W/250W HF: 150W
Spread
angle
Horizontal： 110°/ Vertical:10°
Coverage
angle
0。、2。、4。、6。、8。、10。、12°
Hoisting
Options (Wire Sets)）
Iron frame (one set) / 2 manual
hoists / 2 nylon straps / waterproof canvas
Size（WXHXD）
950x315x511mm
N.W.
41kg
