SWAN TR Series Transformer Transformers Active Line Array Audio System
$ -
Postage : $0.00
Pro Audio Line array TR Series Line array speaker system
·Product Description

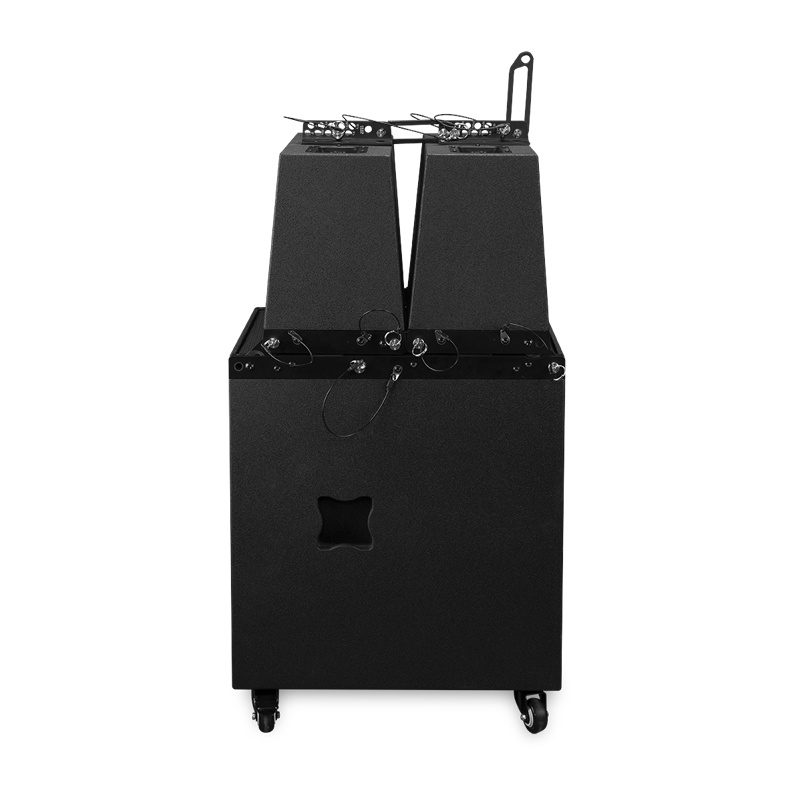

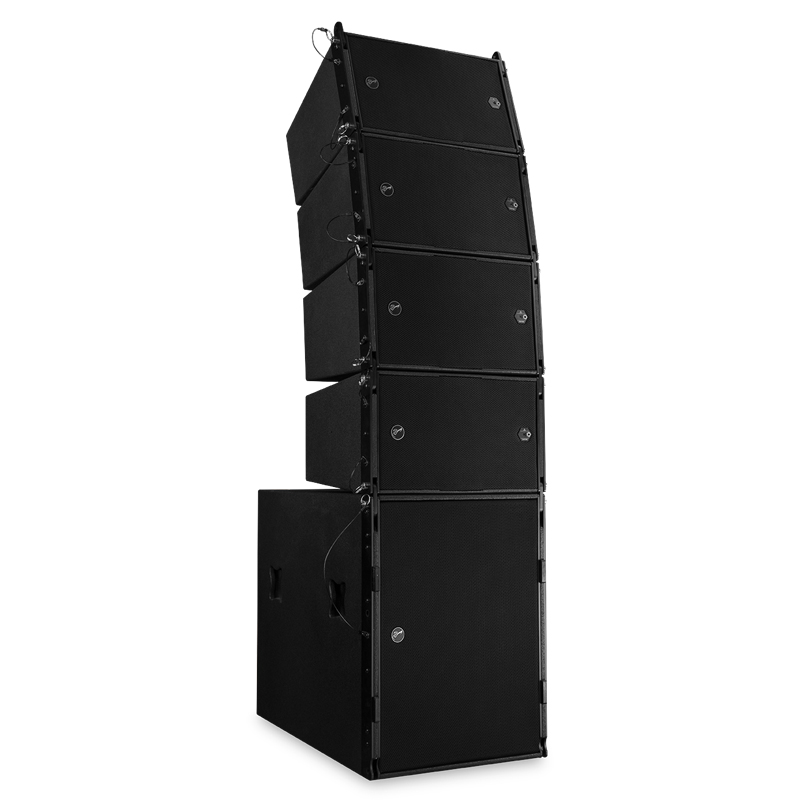

The full name of the TR series is Transformer Active Line Array Audio. It is an active and fast-installed line array audio system integrated with transportation and shipment. It is equipped with multi-channel network transmission and WiFi wireless control. It also has a built-in high-speed DSP processor imported from ADI. And modular design of high-quality power amplifier modules. It is a compact active line array speaker system newly developed by Swans. It adopts a special three-point suspension system structure and a low-frequency speaker with pulley function, which can be easily and quickly assembled, installed, moved and transported. The passive full-range speaker adopts a built-in crossover circuit and is matched with three optional active low-frequency speaker systems. High, the dynamic is large, and the transient is good. With the built-in professional electro-acoustic technology optimized frequency division network, the vertical ceiling surface and ground sound reflection is small, the sound reproduction is clear, and the dynamics are strong.
·Model Description
|
TR Series Product Model |
||
|
Product model |
Product name |
Easy system configuration |
|
TR600Sa |
Active subwoofer |
The active subwoofer is equipped with 2*1400W modules, one channel pushes the subwoofer, and one channel pushes 4 TR600 full-frequency arrays; the full frequency is 2*6 inch mid-bass + 44-core rubidium magnetic tweeter unit full-frequency speaker; subwoofer It is a 2*12 inch long stroke woofer. |
|
TR600Sd |
DSP version active subwoofer |
|
|
TR600Se |
Dante version active subwoofer |
|
|
|
||
|
TR800Sa |
Active subwoofer |
The active subwoofer is equipped with 2*1400W modules, one channel pushes the subwoofer, and one channel pushes 4 TR800 full-frequency arrays; the full frequency is 2*8 inch mid-bass + 2*44 core rubidium magnetic tweeter unit full-frequency speaker; The subwoofer is a 15-inch long-stroke woofer. |
|
TR800Sd |
DSP version active subwoofer |
|
|
TR800Se |
Dante version active subwoofer |
|
|
|
||
|
TR1000Sa |
Active subwoofer |
The active subwoofer is equipped with 4*1400W modules, 1 channel pushes 18-inch subwoofer, 1 channel pushes TR1000S mid-bass speaker, and the remaining two channels push 4 TR1000 full-range arrays or 2 TR1000 full-range arrays + 2 return Listening speakers; full frequency is 2*10 inch mid-bass + 2*44 core rubidium magnetic tweeter full-frequency speaker; mid-bass speaker is 2*12 inch unit, subwoofer is 18 inch long-stroke woofer. |
|
TR1000Sd |
DSP version active subwoofer |
|
|
TR1000Se |
Dante version active subwoofer |
|
|
|
||
|
TR8000Sa |
Active subwoofer |
The active subwoofer is equipped with a 4*1400W power amplifier module, of which 2 channels respectively push a 18-inch long-stroke subwoofer, and the other 2 channels respectively push 2 return speakers and 2 lip fill speakers. |
|
TR8000Sd |
DSP version active subwoofer |
|
|
TR8000Se |
Dante version active subwoofer |
|
·Product Parameters
|
Speaker model |
TR600 |
TR800 |
|
Speaker type |
Passive full-range line array speakers |
Passive full-range line array speakers |
|
Speaker power |
400W(continual) |
500W(continual) |
|
Nominal impedance |
16 Ω |
16 Ω |
|
Frequency Range |
90Hz-20KHz |
80Hz-20KHz |
|
Sensitivity |
99dB |
100dB |
|
Max SPL |
129dB |
131dB |
|
Coverage angle(H×V) |
90×10° |
90×10° |
|
Woofer |
2×6.5"(38mm voice coil) |
2×8"(50mm voice coil) |
|
Tweeter |
1×44mm(Neodymium magnetic driver) |
2×44mm(Neodymium magnetic driver) |
|
Input connection |
2×NL4 ±1 |
2×NL4 ±1 |
|
Install |
hanging, stacking, supporting |
hanging, stacking, supporting |
|
Dimensions (W×H×D mm) |
405×243.8×335mm |
426×286.9 ×391mm |
|
N.W.(±10%) |
13KG |
17KG |
|
G.W. (±10%) |
17KG |
20KG |
|
Carton size(mm) |
407×311×510mm |
462×355×531mm |
|
Speaker model |
TR600Sa |
TR800Sa |
|
Speaker catalogue |
Passive full-range line array speakers |
Passive full-range line array speakers |
|
Frequency range |
40Hz-250Hz |
35Hz-250Hz |
|
Max SPL |
134dB |
135dB |
|
Woofer |
2×12"(65mm voice coil) |
1×15"(75mm voice coil) |
|
Input connection |
Balance XLR-L/R |
Balance XLR-L/R |
|
Install |
hanging, stacking |
hanging, stacking |
|
Active module power |
1×1400W+1×1400W( power output) |
1×1400W+1×1400W(power output) |
|
SNR |
≥108dB |
≥108dB |
|
Damping coefficient |
≥800 |
≥800 |
|
Rated source electromotive force |
1.8V |
1.8V |
|
Input impedance (balanced/unbalanced) |
10KΩ/20KΩ |
10KΩ/20KΩ |
|
Total harmonic distortion |
≤0.05% |
≤0.05% |
|
Cool down |
From top to button |
From top to button |
|
Protection function |
Soft Start/DC/Short Circuit/Overload/Peak Clipping |
Soft Start/DC/Short Circuit/Overload/Peak Clipping |
|
Power supply requirements (national standard) |
≥1.5mm2 power cable (220V) |
≥1.5mm2 power cable(220V) |
|
Dimensions (W×H×D mm) |
405×531×596.8mm |
426×601×737mm |
|
N.W.(±10%) |
35.5KG |
43KG |
|
G.W.(±10%) |
37KG |
46KG |
|
Carton size(mm) |
707×505×630m |
853×536×710mm |
|
Speaker model |
TR600Sd |
TR600Se |
TR800Sd |
TR800Se |
|
Speaker category |
Active low frequency line array speakers |
Active low frequency line array speakers |
||
|
Frequency Range |
40Hz-250Hz |
35Hz-250Hz |
||
|
Max SPL |
134dB |
135dB |
||
|
Woofer |
2×12"(65mm voice coil) |
1×15"(75mm voice coil) |
||
|
Input connection |
Balance XLR-L/R |
Balance XLR-L/R |
||
|
Install |
hanging, stacking |
hanging, stacking |
||
|
Active module power |
1×1400W+1×1400W(power output) |
1×1400W+1×1400W(power output) |
||
|
DSP function |
Built-in high conversion rate DSP processing chip (including PC software) |
Built-in high conversion rate DSP processing chip (including PC software) |
||
|
Network transmission and control functions |
No |
Yes |
No |
Yes |
|
SNR |
≥102dB |
≥102dB |
||
|
Damping coefficient |
≥800 |
≥800 |
||
|
Amplifier module frequency response |
20Hz-20KHz |
20Hz-20KHz |
||
|
Rated source electromotive force |
0.775V |
0.775V |
||
|
Input impedance (balanced/unbalanced) |
10KΩ/20KΩ |
10KΩ/20KΩ |
||
|
Total harmonic distortion |
≤0.05% |
≤0.05% |
||
|
Cool down |
From top to button |
From top to button |
||
|
Protection function |
Soft Start/DC/Short Circuit/Overload/Peak Clipping |
Soft Start/DC/Short Circuit/Overload/Peak Clipping |
||
|
Power supply requirements (national standard) |
≥1.5mm2 power cable (220V) |
≥1.5mm2電源線(220V) |
||
|
Dimensions (W×H×D mm) |
405×531×596.8mm |
426×601×737mm |
||
|
N.W.(±10%) |
35.5KG |
43KG |
||
|
G.W.(±10%) |
37KG |
46KG |
||
|
Carton size(mm) |
707×505×630mm |
853×536×710mm |
||
|
Speaker model |
TR1000Sa |
TR1000Sd |
TR1000Se |
|
Speaker category |
Active low frequency line array speakers |
Active low frequency line array speakers |
|
|
Frequency range |
30Hz-250Hz |
30Hz-250Hz |
|
|
Max SPL |
138dB |
138dB |
|
|
Woofer |
1×18"(100mm voice coil) |
1×18"(100mm voice coil) |
|
|
Input connection |
Balance XLR-L/R |
Balance XLR-L/R |
|
|
Install |
hanging, stacking |
hanging, stacking |
|
|
Active module power |
1×1400W+3×1400W(power output） |
1×1400W+3×1400W(power output) |
|
|
DSP function |
No DSP |
Built-in high conversion rate DSP processing chip (including PC software) |
|
|
Network transmission and control functions |
NO |
NO |
Yes |
|
SNR
(1KHz,0.775V A-Weighted)
|
≥108dB |
≥102dB |
|
|
Damping coefficient |
≥800 |
≥800 |
|
|
Amplifier module frequency response |
20Hz-20KHz |
20Hz-20KHz |
|
|
Rated source electromotive force |
1.8V |
0.775V |
|
|
Input impedance (balanced/unbalanced) |
10KΩ/20KΩ |
10KΩ/20KΩ |
|
|
Total harmonic distortion |
≤0.05% |
≤0.05% |
|
|
Cool down |
From top to button |
From top to button |
|
|
Protection function |
Soft Start/DC/Short Circuit/Overload/Peak Clipping |
Soft Start/DC/Short Circuit/Overload/Peak Clipping |
|
|
Power supply requirements (national standard) |
≥1.5mm2 power cable (220V) |
≥1.5mm2 power cable(220V) |
|
|
Dimensions (W×H×D mm) |
550×650×750mm |
550×650×750mm |
|
|
N.W.(±10%) |
62.5KG |
62.5KG |
|
|
G.W.(±10%) |
65.5KG |
65.5KG |
|
|
Carton size(mm) |
944×670×810mm |
944×670×810mm |
|
|
Speaker model |
TR1000 |
TR1000S |
TR8000S |
|
Speaker category |
Passive full-range line array speakers |
Passive full-range line array speakers |
Passive full-range line array speakers |
|
Power |
600W(continual) |
600W(continual) |
1400W( continual) |
|
Nominal impedance |
8 Ω |
4Ω |
4Ω |
|
Frequency range |
70Hz-20KHz |
38Hz-180Hz |
30Hz-250Hz |
|
Sensitivity |
102dB |
99dB |
102dB |
|
Max SPL |
136dB |
132dB |
140dB |
|
Coverage angle(H×V) |
90×10° |
omnidirectional |
omnidirectional |
|
Woofer |
2×10"(65mm voice coil) |
2×12"(65mm voice coil) |
2×18"(100mm voice coil) |
|
Tweeter |
2×44mm(Neodymium magnetic driver) |
|
|
|
Input connection |
2×NL4 ±1 |
2×NL4 ±1 |
2×NL4 ±1 |
|
Install |
hanging, stacking, supporting |
hanging, stacking, supporting |
stacking |
|
Dimensions (W×H×D mm) |
550×331×495mm |
550×405×500.5mm |
1000×600×750mm |
|
N.W.(±10%) |
27.5KG |
32KG |
78.5KG |
|
G.W.(±10%) |
30.5KG |
35KG |
81.5KG |
|
Carton size(mm) |
586×405×671mm |
660×535×638mm |
1150×760×960mm |
|
Speaker model |
TR8000Sd |
TR8000Se |
TR8000Sa |
|
Speaker catalogue |
Active subwoofer |
Active subwoofer |
|
|
Frequency range |
30Hz-250Hz |
30Hz-250Hz |
|
|
Max SPL |
145dB |
145dB |
|
|
Woofer |
2×18"(100mm voice coil) |
2×18"(100mm voice coil) |
|
|
Input connection |
Balance XLR-L/R |
BalanceXLR-L/R |
|
|
Install |
Stacking |
Stacking |
|
|
Active module power |
2×1400W+2×1400W(power output) |
2×1400W+2×1400W(power output) |
|
|
DSP function |
Built-in high conversion rate DSP processing chip (including PC software) |
No DSP |
|
|
Network transmission and control functions |
No |
Yes |
|
|
SNR
(1KHz,0.775V A-Weighted)
|
≥102dB |
≥108dB |
|
|
Damping coefficient |
≥800 |
≥800 |
|
|
Rated source electromotive force |
0.775V |
1.8V |
|
|
Input impedance (balanced/unbalanced) |
10KΩ/20KΩ |
10KΩ/20KΩ |
|
|
Total harmonic distortion |
≤0.05% |
≤0.05% |
|
|
Cool down |
From top to button |
From top to button |
|
|
Protect function |
Soft Start/DC/Short Circuit/Overload/Peak Clipping
/distortion limiter/overheat/boot volume fade in
|
Soft Start/DC/Short Circuit/Overload/Peak Clipping
/distortion limiter/overheat/boot volume fade in
|
|
|
Power supply requirements (national standard) |
≥1.5mm2 power cable(220V) |
≥1.5mm2power cable(220V) |
|
|
Dimensions (W×H×D mm) |
1000×600×750mm |
1000×600×750mm |
|
|
N.W.(±10%) |
84KG |
84KG |
|
