SWAN

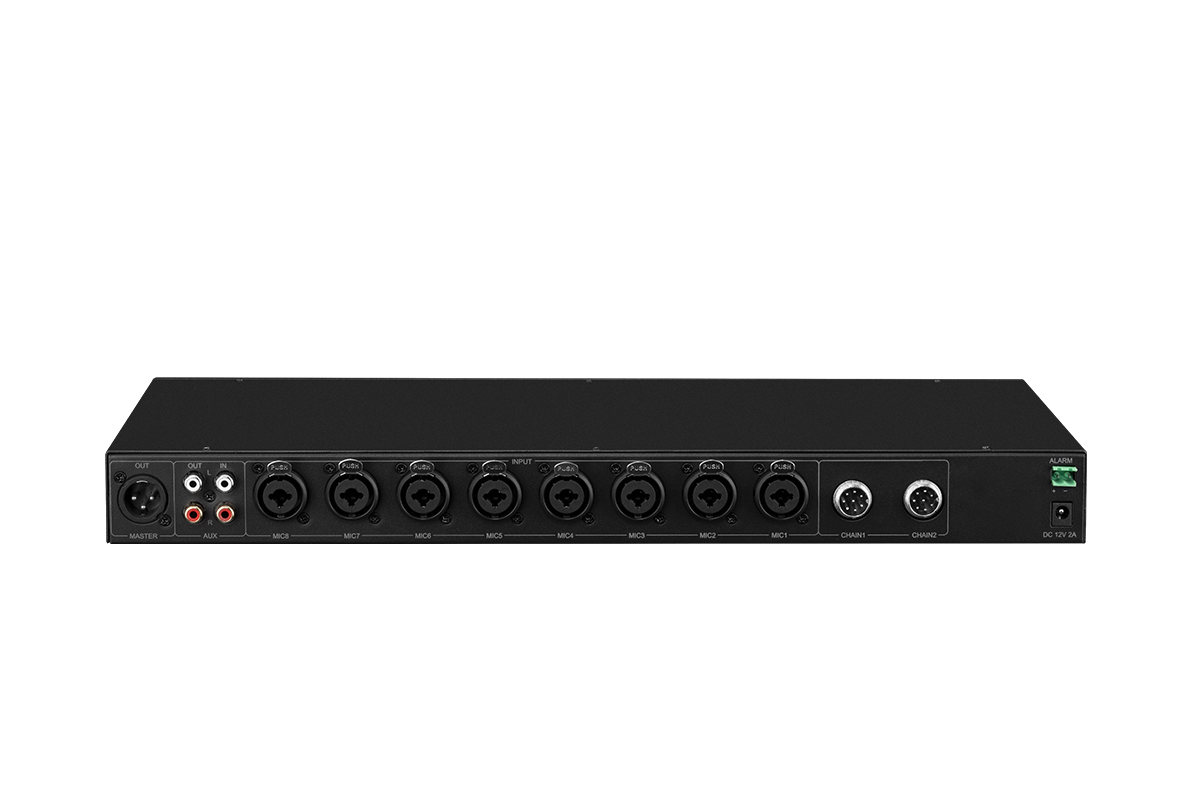

| HY200MCU 8-channel phantom mixer

· Product Features

1、8-channel microphone input, 1 line input, 1 line output.
2、The host has a 48V phantom power switch key.
3、Built-in anti-whistle function, support all-channel phantom power supply.
4、Each channel has an independent volume control, and has a priority mode, when the priority channel speaks, the level of other channels is automatically attenuated.
5、High-fidelity sound quality circuit design, restore the essence of sound with signal level indicator.
6、The main unit has two sets of audio mixing outputs for sound reinforcement systems or other equipment.

· Technical Parameters

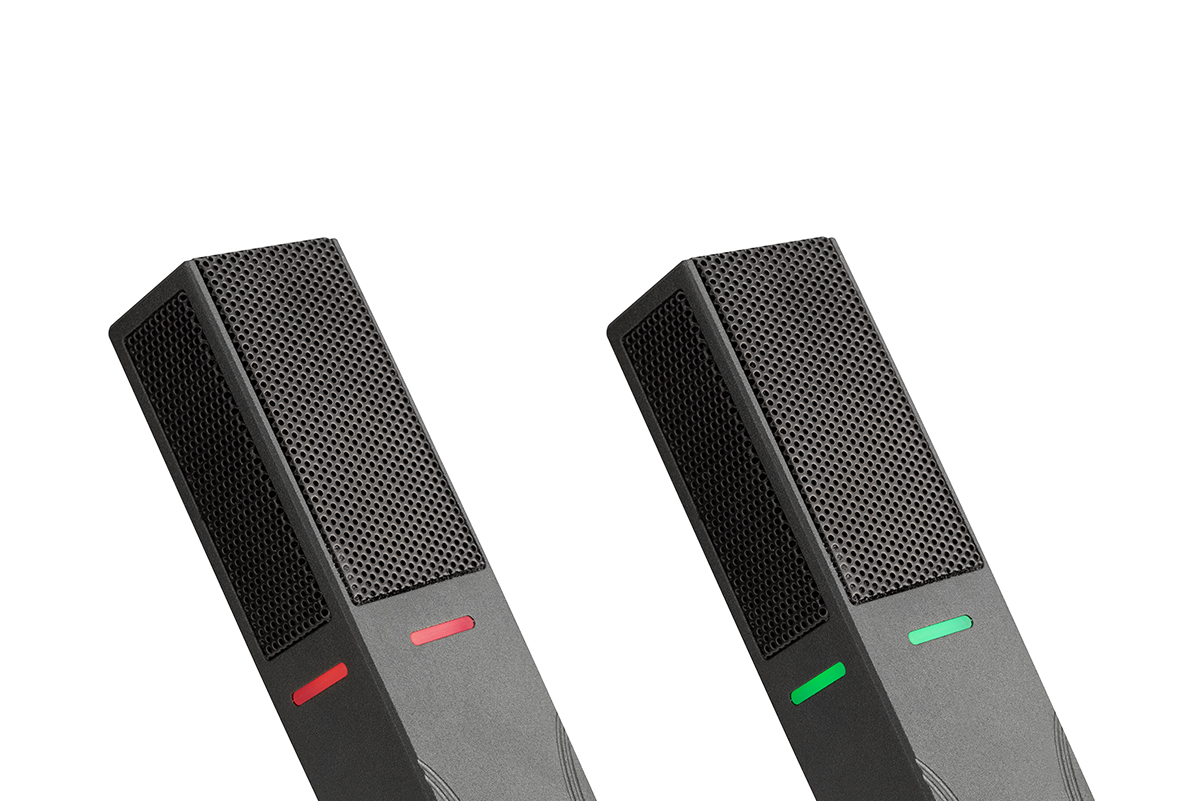

| HY200D Wired digital conference speaking unit

·  Product Features

1、All metal base + square column microphone design.
2、Condenser microphone, super cardioid polar pattern, can clearly capture sound details.
3、Built-in windproof cotton, optimized sound cavity structure design, so that the sound quality is better.
4、The microphone pitch angle can be adjusted arbitrarily to ensure the best sound pickup effect.
5、Black all-metal base with fine low-gloss and matte finish.
6、The base is sturdy and thick, and is equipped with shock-proof insulating rubber pads, which can effectively reduce frictional vibration and mechanical noise on the installation surface.
7、Hand in hand conference microphone comes with 1.5m eight-core female conference extension cable.
8、There is a microphone self-locking switch button, press the switch button, the microphone red indicator light is on, it is in the open state.
9、Suitable for various occasions such as conferences, speeches, teaching, etc.
10、Use with the conference host.

| HY200P Phantom Wired Conference Speaking Unit

·  Product Features

1、All metal base + square column microphone design.
2、電Condenser microphone, super cardioid polar pattern, can clearly capture sound details.
3、Built-in windproof cotton, optimized sound cavity structure design, so that the sound quality is better.
4、The microphone pitch angle can be adjusted arbitrarily to ensure the best sound pickup effect.
5、Black all-metal base with fine low-gloss and matte finish.
6、The base is sturdy and thick, and is equipped with shock-proof insulating rubber pads, which can effectively reduce frictional vibration and mechanical noise on the installation surface.
7、The back of the base is a 3-pin electroplated nickel XLR male socket, which is used as an audio signal output terminal.
8、The microphone works with 48V phantom power supply.
9、There is a microphone self-locking switch button, press the switch button, the microphone red indicator light is on, it is in the open state.
10、Suitable for various occasions such as conferences, speeches, teaching, etc.
11、Use with the conference host.

Note： HY200D Suitable for Swans HY600 series host, HY800 series host

·Technical Parameters
