M6
Parameters
|
|
| Series： | Home Theater Series |
| Model： | Swans M6 |

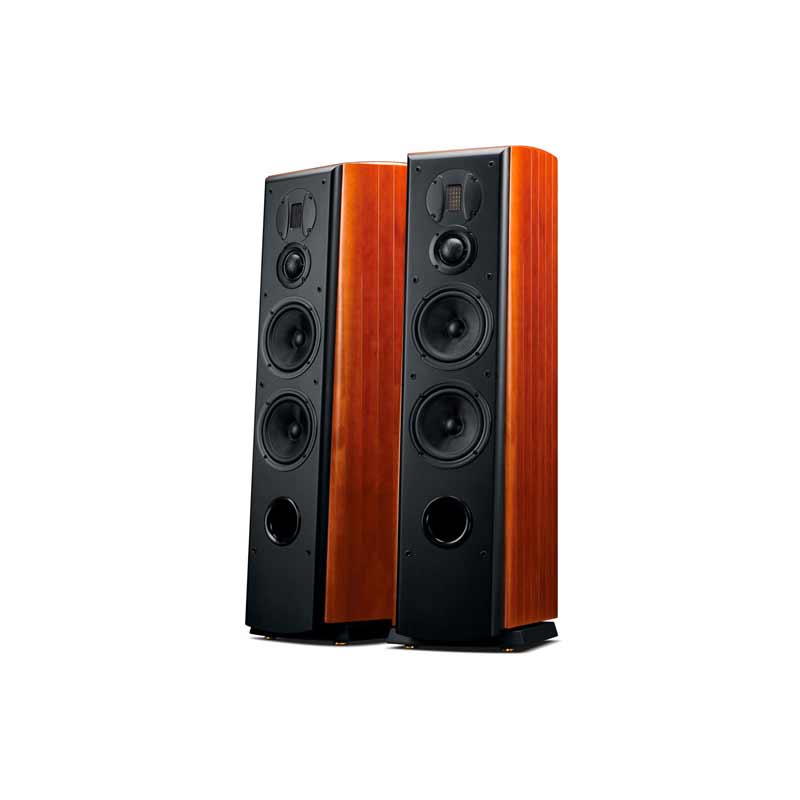

| Front Main Speaker | |
| Front Main Speaker | Front Main Speaker Swans M6F |
| System Type： | 3-way 4th-order vented box system |
| Drivers Configuration： |
Two
6.5" woofers
|
|
2”
dome midrange driver
|
|
|
Isodynamic
ribbon tweeter
|
|
| Frequency Range： | 38Hz - 20kHz |
| Harmonic Distortion： | 62Hz - 20kHz ≤1%(2.83V/1m) |
| Sensitivity (2.83V/1m)： | 89dB |
| Nominal Impedance： | 4? |
| Power Handling： | 10W - 120W |
| Dimensions (W×D×H)： | 11.4"×14.8"×40.8" |
| Net Weight (each)： | 75.0 lbs |

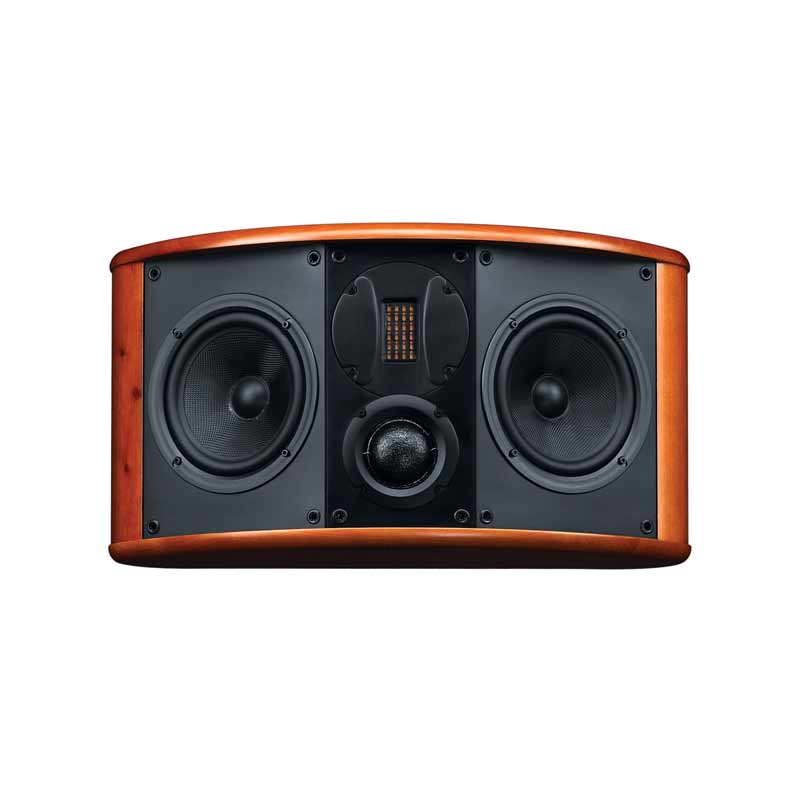

| Front Center Speaker | |
| Front Center Speaker | Front Center Speaker Swans M6C |
| System Type： | 3-way 4th-order vented box system |
| Drivers Configuration： |
Two
6.5" woofers
|
|
2”
dome midrange driver
|
|
|
Isodynamic
ribbon tweeter
|
|
| Frequency Range： | 55Hz - 20kHz |
| Harmonic Distortion： | 62Hz - 20kHz ≤1%(2.83V/1m) |
| 靈敏度Sensitivity (2.83V/1m)： | 89dB |
| Nominal Impedance： | 4Ω |
| Power Handling： | 10W - 120W |
| Dimensions (W×D×H)： | 23.4"×10.9"×10.2" |
| Net Weight (each)： | 35.3 lbs |
| Surround Speaker | |
| Surround Speaker | Surround Speaker Swans M6R |
| System Type： | 3-way 2nd-order sealed box system |
| Drivers Configuration： |
Two
6.5" woofers
|
|
2”
dome midrange driver
|
|
|
Isodynamic
ribbon tweeter
|
|
| Frequency Range： | 60Hz - 20kHz |
| Harmonic Distortion： | 65Hz - 20kHz ≤1%(2.83V/1m) |
| Sensitivity (2.83V/1m)： | 89dB |
| 額定阻抗Nominal Impedance： | 4Ω |
| Power Handling： | 10W - 120W |
| Dimensions (W×D×H)： | 20.8"×9.4"×11.1" |
| Net Weight (each)： | 25.4 lbs |
| Finish： | Natural wood cabinet with aluminium ring |
