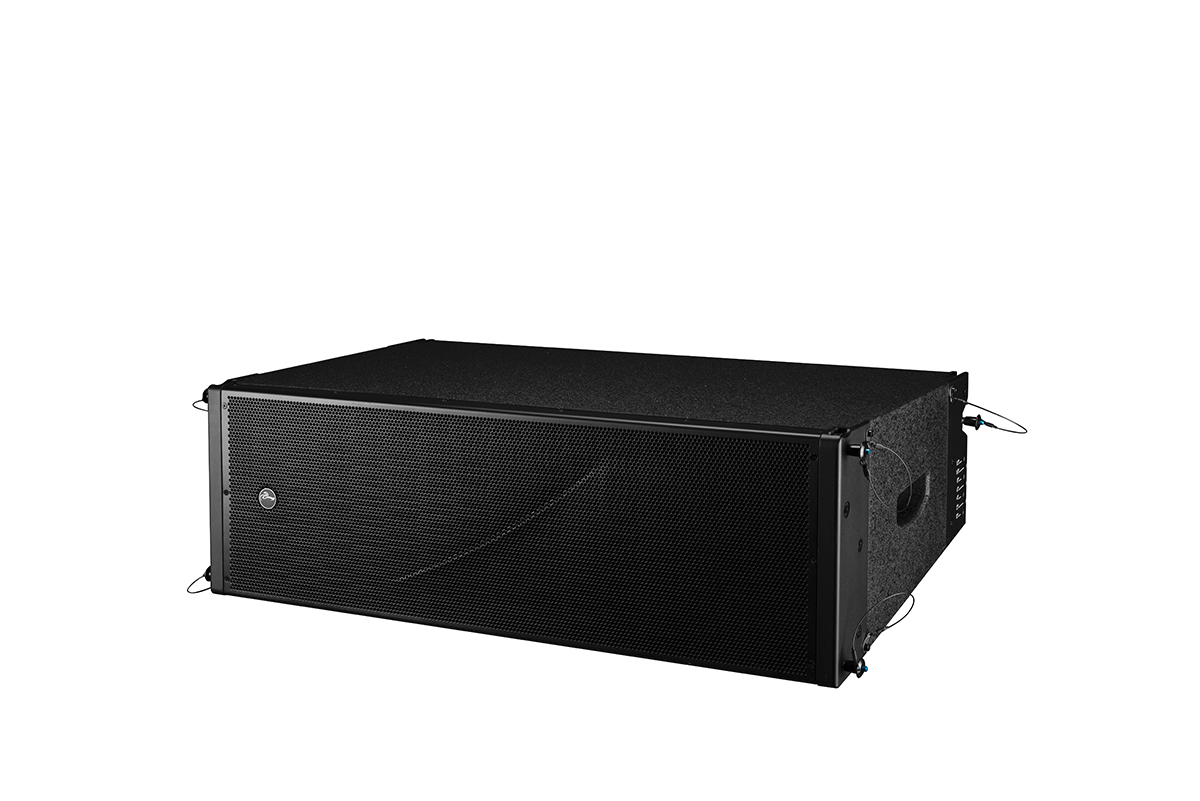

Pro-1002+Pro-1512S
Features:

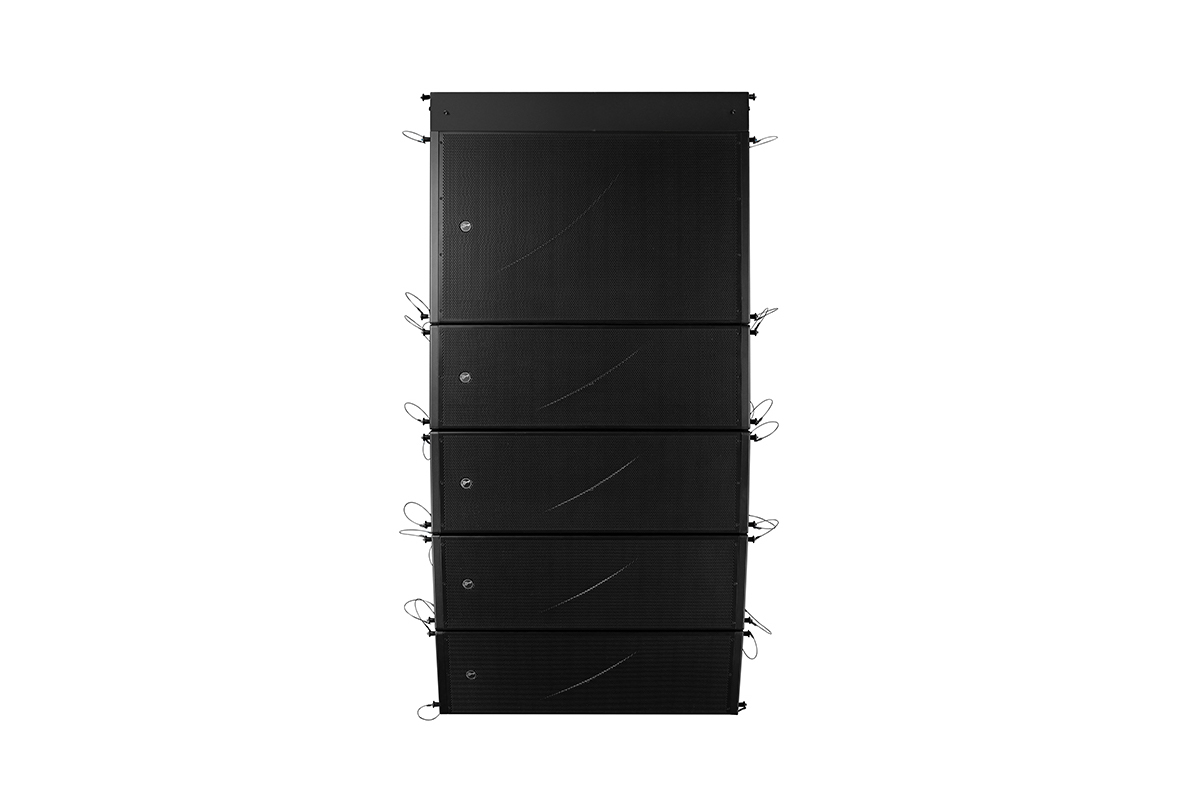

Pro-1002 and Pro-1512S are line array speaker systems newly launched by HiVi brand to solve the sound pressure level attenuation caused by long-distance sound transmission. By correcting the wave front to make it close to the plane wave transmission, so as to solve the problem of long-distance propagation. Through the special hanging system, multiple speakers can be beneficially installed and connected to form a powerful line sound source and continuous sound pressure level, with great dynamics, and good transients. This system is especially suitable for all kinds of basketball halls, halls, auditoriums, theaters, multi-functional meeting rooms, etc. It is also equipped with hangers, bolts, various connectors, etc., making the system combination and hoisting easy to use.
Dimension drawing:
Product Parameters：
|
Model |
Pro-1002 |
|
Product portfolio |
Bass configuration:1 pcs 10" (φ65mm core) bass, 8P input socket 1+/1- |
|
Bass configuration: 1pcs 10"(φ65mm core )bass, 8P input socket 2+/2- |
|
|
Tweeter configuration: 1 pcs 3" (φ75mm core) tweeter, 8P input socket 3+/3- |
|
|
Forming board: birch plywood / outer protective layer: environmental protection and hard black dot paint |
|
|
Hanging parts: special hanging system / front protection: spraying and hard rounded hole steel mesh |
|
|
Frequency response(土3dB) |
LF:58Hz-3kHz/58Hz- 3kHz HF:850Hz- 20kHz |
|
Sensitivity(axis 1m / 1W) |
LF:98dB/98dB HF:112dB |
|
Input impedance |
LF:160/160 HF:16Q |
|
Continuous power |
LF:250W/250W HF:1 50W |
|
Spread angle Hoisting angle |
Horizontal line: 110°/ Vertical line: 10° 0°、2°、 4°、6°、 8°、10°、 12° |
|
Hoisting options (wire set) |
Iron frame (one set per group) / 2 manual hoists / 2 nylon straps / waterproof canvas |
|
Dimensions (width x height x depth) |
950x318x511mm |
|
Net weight |
41kg |
Product Parameters：
|
Model |
Pro-1002 |
|
Product portfolio |
Bass configuration:1 pcs 10" (φ65mm core) bass, 8P input socket 1+/1- |
|
Bass configuration: 1pcs 10"(φ65mm core )bass, 8P input socket 2+/2- |
|
|
Tweeter configuration: 1 pcs 3" (φ75mm core) tweeter, 8P input socket 3+/3- |
|
|
Forming board: birch plywood / outer protective layer: environmental protection and hard black dot paint |
|
|
Hanging parts: special hanging system / front protection: spraying and hard rounded hole steel mesh |
|
|
Frequency response(土3dB) |
LF:58Hz-3kHz/58Hz- 3kHz HF:850Hz- 20kHz |
|
Sensitivity(axis 1m / 1W) |
LF:98dB/98dB HF:112dB |
|
Input impedance |
LF:160/160 HF:16Q |
|
Continuous power |
LF:250W/250W HF:1 50W |
|
Spread angle Hoisting angle |
Horizontal line: 110°/ Vertical line: 10° 0°、2°、 4°、6°、 8°、10°、 12° |
|
Hoisting options (wire set) |
Iron frame (one set per group) / 2 manual hoists / 2 nylon straps / waterproof canvas |
|
Dimensions (width x height x depth) |
950x318x511mm |
|
Net weight |
41kg |
