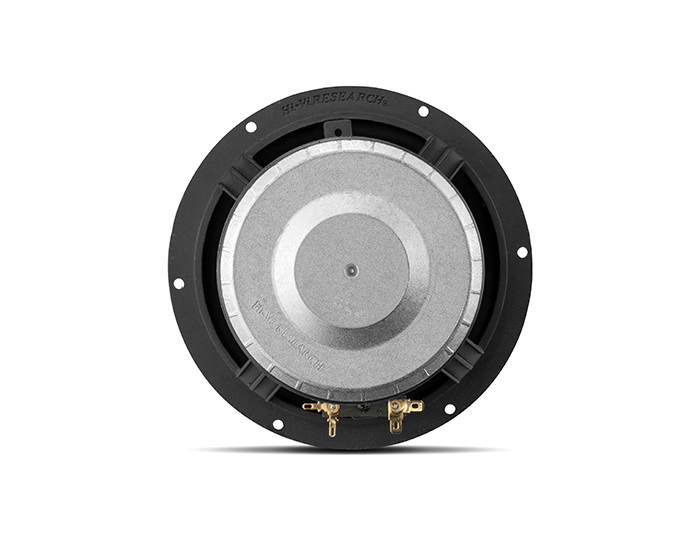

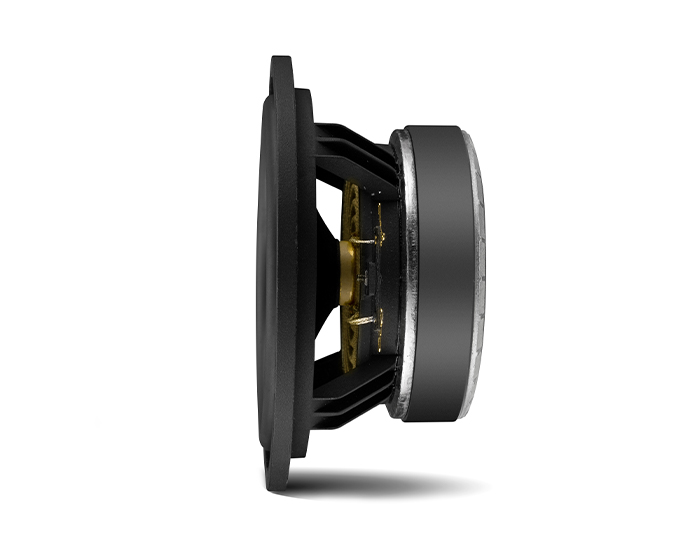

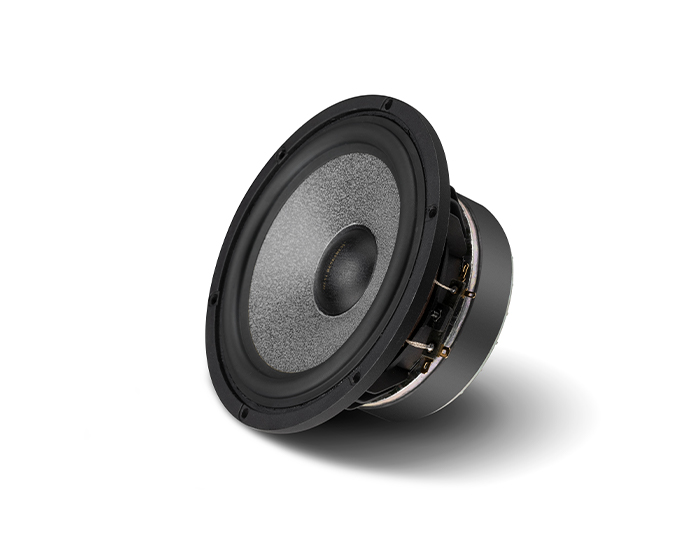

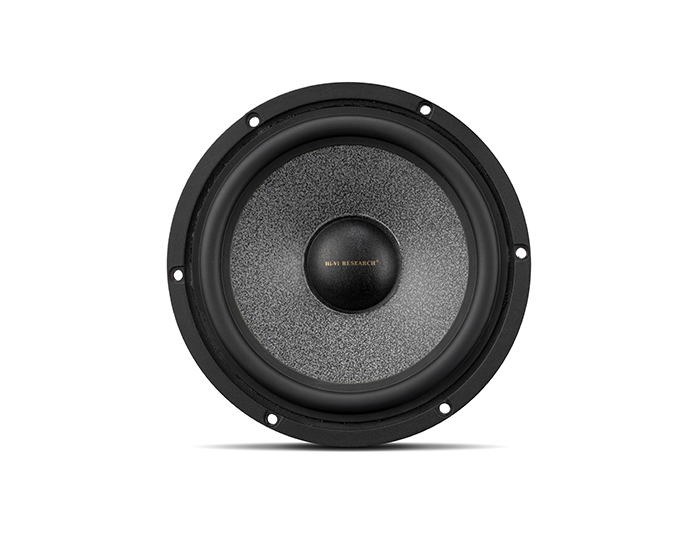

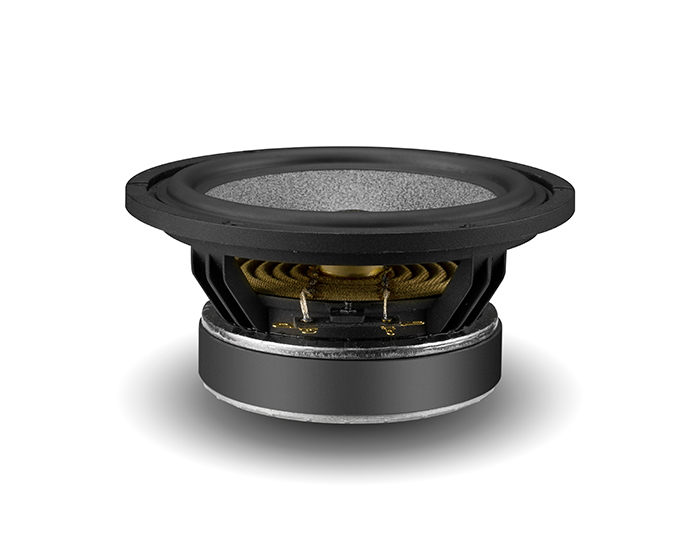

Swan C6.5 Mid-bass Speaker
$ 88.00
Postage : $0.00
Speaker Driver C Series
Design Features:
Leading Small/Thiele parameter optimization design technology-convenient cabinet design!
German imported paper and fiber mixed material diaphragm, surface marbled treatment-natural and accurate sound / German fatigue-resistant and high-loss natural rubber folding ring-strong absorption of excess vibration energy / high permeability, high stability and linear centering support-improve compliance Air compression characteristics/single-magnet high-performance large magnetic circuit system-powerful linear drive source/HiVi’s symmetrical magnetic field (SMD) drive technology-high sound pressure distortion output/finite element precision computer simulation design integrated high-density aluminum basin frame -Eliminate harmful resonance / high-power, high-temperature, no eddy current loss AL voice coil skeleton-guarantee of high-quality bass.
Voice characteristics:
Naturally accurate, highly analytical, full of vitality and dynamic!
Leading Small/Thiele parameter optimization design technology-convenient cabinet design!
German imported paper and fiber mixed material diaphragm, surface marbled treatment-natural and accurate sound / German fatigue-resistant and high-loss natural rubber folding ring-strong absorption of excess vibration energy / high permeability, high stability and linear centering support-improve compliance Air compression characteristics/single-magnet high-performance large magnetic circuit system-powerful linear drive source/HiVi’s symmetrical magnetic field (SMD) drive technology-high sound pressure distortion output/finite element precision computer simulation design integrated high-density aluminum basin frame -Eliminate harmful resonance / high-power, high-temperature, no eddy current loss AL voice coil skeleton-guarantee of high-quality bass.
Voice characteristics:
Naturally accurate, highly analytical, full of vitality and dynamic!
It is suitable for the low frequency unit in the Hi-Fi two-way phase inverted speaker system and the midrange unit in the three-way system.
| 惠威 C6.5 技術參數 | |||
| 參數名稱 | 符號 | 數值 | 單位 |
| 基本應用參數 | |||
| 額定阻抗 | Z | 8 | Ω |
| 諧振頻率 | Fs | 53 | Hz |
| 額定功率 | Pnom | 60 | W |
| 最大功率 | Pmax | 120 | W |
| 靈敢度(283V/1m） | E | 88 | dB |
| 重量 | W | 2.18 | kg |
| 音圈 | |||
| 音圈直徑 | ? | 25 | mm |
| 直流電阻 | Re | 6.5 | Ω |
| 音圈卷寬 | H | 14 | mm |
| 音圈線材 | 耐高溫SV線 | ||
| 音圈骨架 | AL | ||
| 磁路 | |||
| 磁路型式 | 單磁式大磁路 | ||
| 磁體材料 | 高性能鐵氧磁 | ||
| 力系數(BL值) | BL | 9.09 | N/A |
| 磁隙高度 | He | 6.0 | mm |
| 最大線性位移 | Xmax | 4.9 | mm |
| Smal/ Thiele參數 | |||
| 順性 | Cms | 500.35 | uM/N |
| 機械Q值 | Qms | 2.12 | - |
| 電Q值 | Qes | 0.47 | - |
| 總Q值 | Qts | 0.38 | - |
| 振動質量 | Mms | 17.5 | g |
| 等效容積 | Vas | 13.3 | L |
| 推薦箱體參數 | |||
| 箱體類型 | 倒相式 | ||
| 推薦箱體凈客積 | Vb | 15.1 | L |
| 倒相箱調諧頻率 | Fb | 50 | Hz |
| 箱體在自由場-3dB頻率 | F3 | 47 | Hz |
