Swan Q series professional speakers
$ -
Postage : $0.00

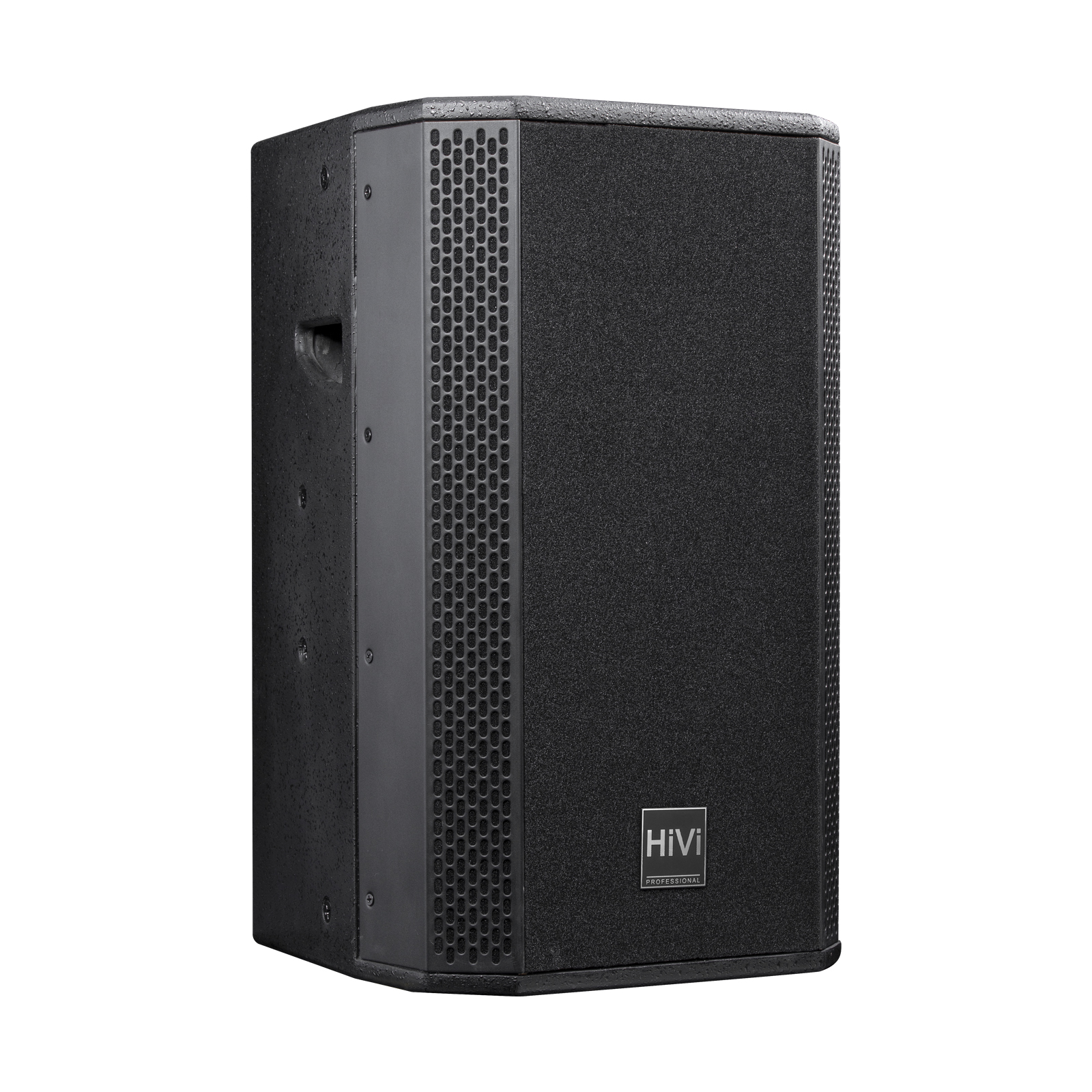

Pro Audio Q series Entertainment Speaker
|
Product Description |
||
|
Q series is two frequency full frequency speaker, which is designed for entertainment places and can also be used for sound reinforcement occasions such as conferences and multi-function halls. It adopts high-quality Swan electroacoustic devices and fashionable box plate, which is dynamic and powerful. Multi angle design can not only make the installation of the system more diversified, but also effectively suppress the sound diffraction of the system. The exterior is decorated with high-strength black wear-resistant coating, which is convenient for system handling and installation. Swan high-quality molded steel mesh, effective protection unit, no resonance under high power. Equipped with tripod support base and multiple M8 standard lifting points, combined with diversified installation accessories, the multi-functional characteristics of the system can be brought into full play. |
||
|
Product Parameters |
||
| Model |
Q10 |
Q12 |
|
Frequency Range |
55Hz-20KHz | 50Hz-20KHz |
|
Rated input power |
300W(continued)
600W(program signal)
1200W(peak)
|
400W(continued)
800W(program signal)
1600W(peak)
|
| Sensitivity | 97dB(1W/1m) | 100dB(1W/1m) |
| SPL |
125dB(continued)
128dB(peak)
|
129dB(continued)
132dB(peak)
|
| Rated Impedance | 8 Ω | 8 Ω |
| Coverage(HxV) | 100°x70° | 100°x70° |
| Woofer | 1x10"(65mm) | 1x12"(75mm) |
| Tweeter | 1x44mm Diaphragm Tweeter | 1x44mm Diaphragm Tweeter |
| Connection | 2xSpeakon NL4 | 2xSpeakon NL4 |
| Installation | M8 hanging type | M8 hanging type |
| Dimension(W x H x D ) | 322x550x340mm | 380x620x380mm |
| N.W.(±10%) | 18 KG | 23.5 KG |
|
Product Dimension |
||
|
||
|
Function indication |
||
|
|
||
