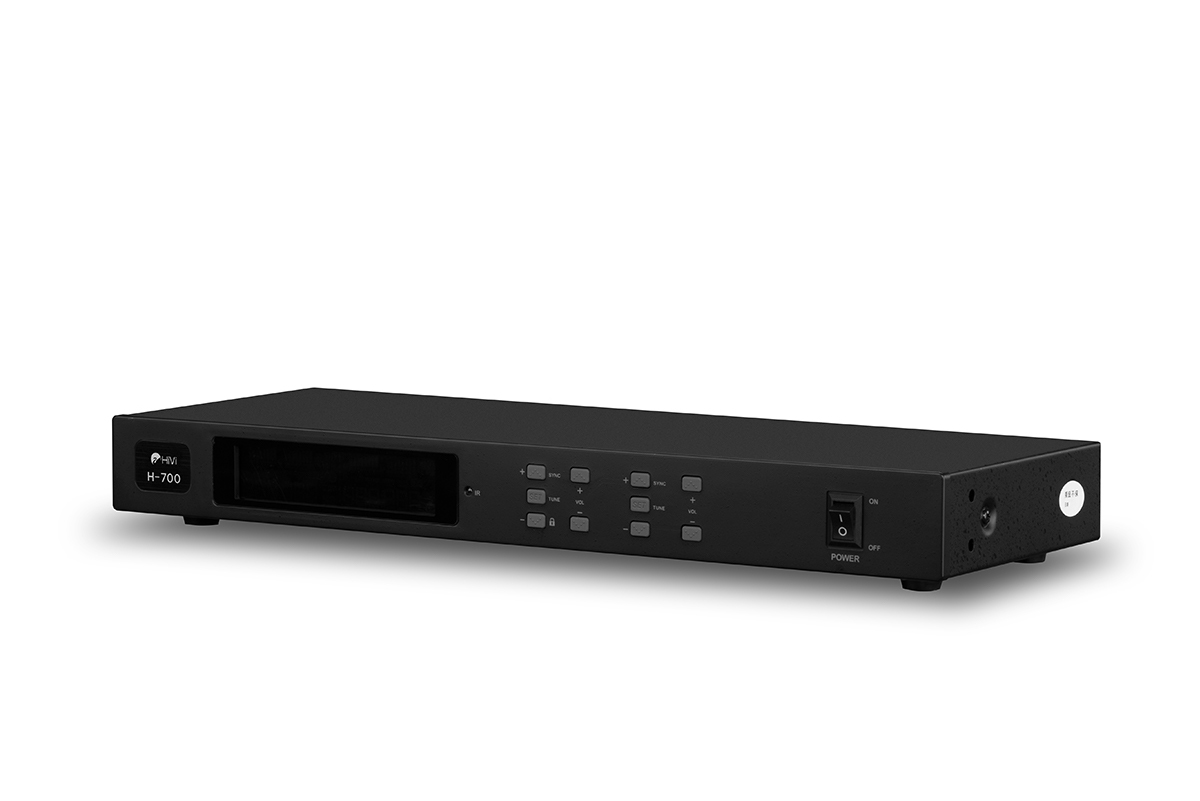

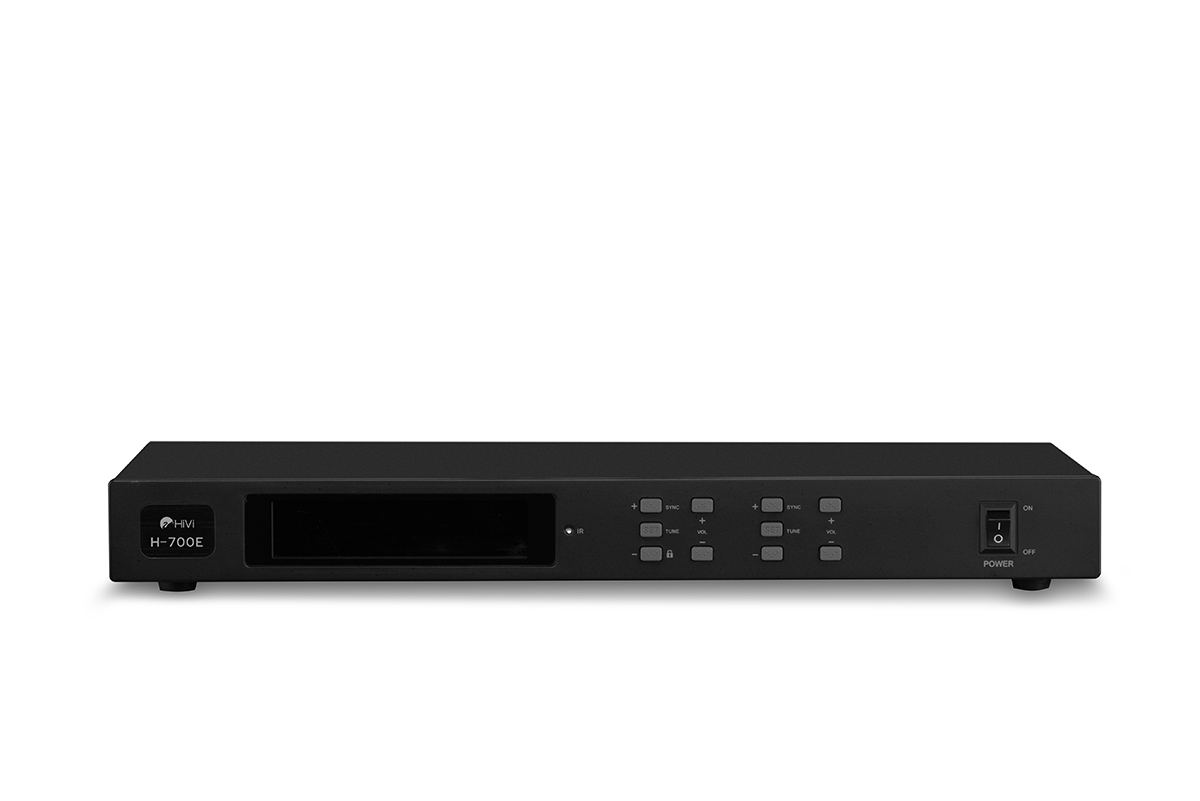

Swan H-700E Wireless Microphone (Gooseneck)
$ -
Postage : $0.00
Model
Pro Audio Microphone equipment H-700 Series

·Features
1、Industry-leading circuit design and production to ensure product reliability and stability;

2、PLL dual-channel phase-locked loop loop design, frequency offset can be automatically corrected;
3、Unique intelligent ID identification technology, more effective against interference
4、Digital and analog mixed transmission, without the disadvantage of audio transmission delay;
5、Built-in up to 200 channels, the frequency distribution can be easily set;
6、Simple infrared frequency matching design, frequency adjustment is easy to achieve;
7、LCD liquid crystal display, the working status of the equipment is clear at a glance;
8、With balanced and unbalanced audio output, it is convenient to connect various audio equipment;
9、The receiver displays the parameters of the transmitter, which is convenient for monitoring the working condition of the microphone;
10、There is a mute indicator on the gooseneck microphone, which is convenient for the host to understand the equipment status;
11、The volume and transmission power can be adjusted on the wireless transmitter base, which is convenient for user engineering debugging;
12、The wireless transmitter base has a key lock, which can prevent the user from accidentally touching the adjustment device;


·Product Parameters


System

Model

H-700E

Use distance

≥80 meters (the actual distance is related to the surrounding environment)

Frequency Range

650-700MHz

Radio frequency generation

Phase Locked Loop Frequency Synthesizer

RF bandwidth

50MHz

RF Frequency Accuracy

+/-10ppm

Frequency points

200 (100 left and right)

Operating temperature

-10 degrees Celsius to 50 degrees Celsius

Audio frequency response

60Hz-15KHz

System SNR

>90dB(A-weighted, maximum output)

System Total Harmonic Distortion

<0.8% 1KHz(300mV output)

Receiver

Receiving method

Super-Intradyne Secondary Mixing Mode

Diversity reception

-95dB

Sensitivity

0.8% 1KHz(300mV output)

Display method

LCD

Power supply

DC12V 500mA

Audio output method

Two balanced XLR/one mixed output

Channel

2-way

Launcher

Dynamic Range

>90dB

Max. transmit power

30mW

Display method

LCD

Current consumption

<150mA/3V

Power supply

AA1.5Vx2

Use time

About 8 hours (related to battery quality)

Pick-up Cartridge

Transduction method

Capacitive

Pick-up Cartridge

Cardioid

Sensitivity

-43dB±3dB(0dB=1V/Par@ 1KHz)

SPL

>110dB SPL

Receiver

Receiving method

Super-Intradyne Secondary Mixing Mode

Diversity reception

-95dB

Sensitivity

0.8% 1KHz(300mV output)

Display method

LCD

Power supply

DC12V 500mA

Audio output method

Two balanced XLR/one mixed output

Channel

2-way

Launcher

Dynamic Range

>90dB

Max. transmit power

30mW

Display method

LCD

Current consumption

<150mA/3V

Power supply

AA1.5Vx2

Use time

About 8 hours (related to battery quality)

Pick-up Cartridge

Transduction method

Capacitive

Pick-up Cartridge

Cardioid

Sensitivity

-43dB±3dB(0dB=1V/Par@ 1KHz)

SPL

>110dB SPL
