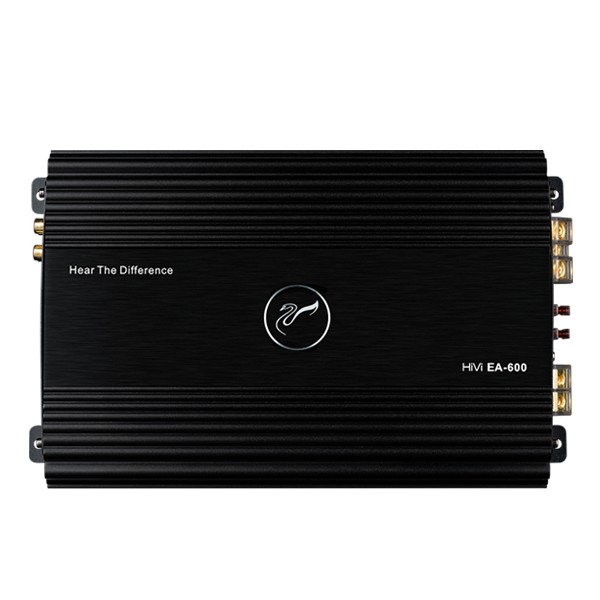

Swan EA-600 Car Speaker Power Amplifier
$ 328.00
Postage : $0.00
Car Audio Car amplifier EA Series
1. Product features:
? 4-channel high-performance class AB amplifier
? Adjustable gain
? Adjustable bass boost
? Optional high-pass/low-pass/through function
? High-pass/low-pass frequency adjustable
? Stable MOSFET circuit
? Perfect overload, short circuit and overhead ng protection functions
2. Parameters:
|
Frequency Response |
20Hz-20KHz |
|
Input impedance |
22KΩ |
|
Input sensitivity |
200mV-8V adjustable |
|
Distortion |
<0.05% |
|
Signal-noise ratio |
>90dB |
|
Separation |
>50dB |
|
High/low pass filter |
50Hz-250Hz adjustable |
|
Bass boot |
0dB-6dB-12dB adjustable @50Hz |
|
Output power |
4x60W Rms @ 4Ω stereo 4x100W Rms @ 2Ω stereo 2x200W Max @ 4Ωbridge |
|
Fuse |
30Ax2 |
|
Dimension |
288x180x58mm(LxWxH) |
