Swan ML series Line array speakers
$ -
Postage : $0.00
Model
Pro Audio Line array ML series line array speaker
Product Description

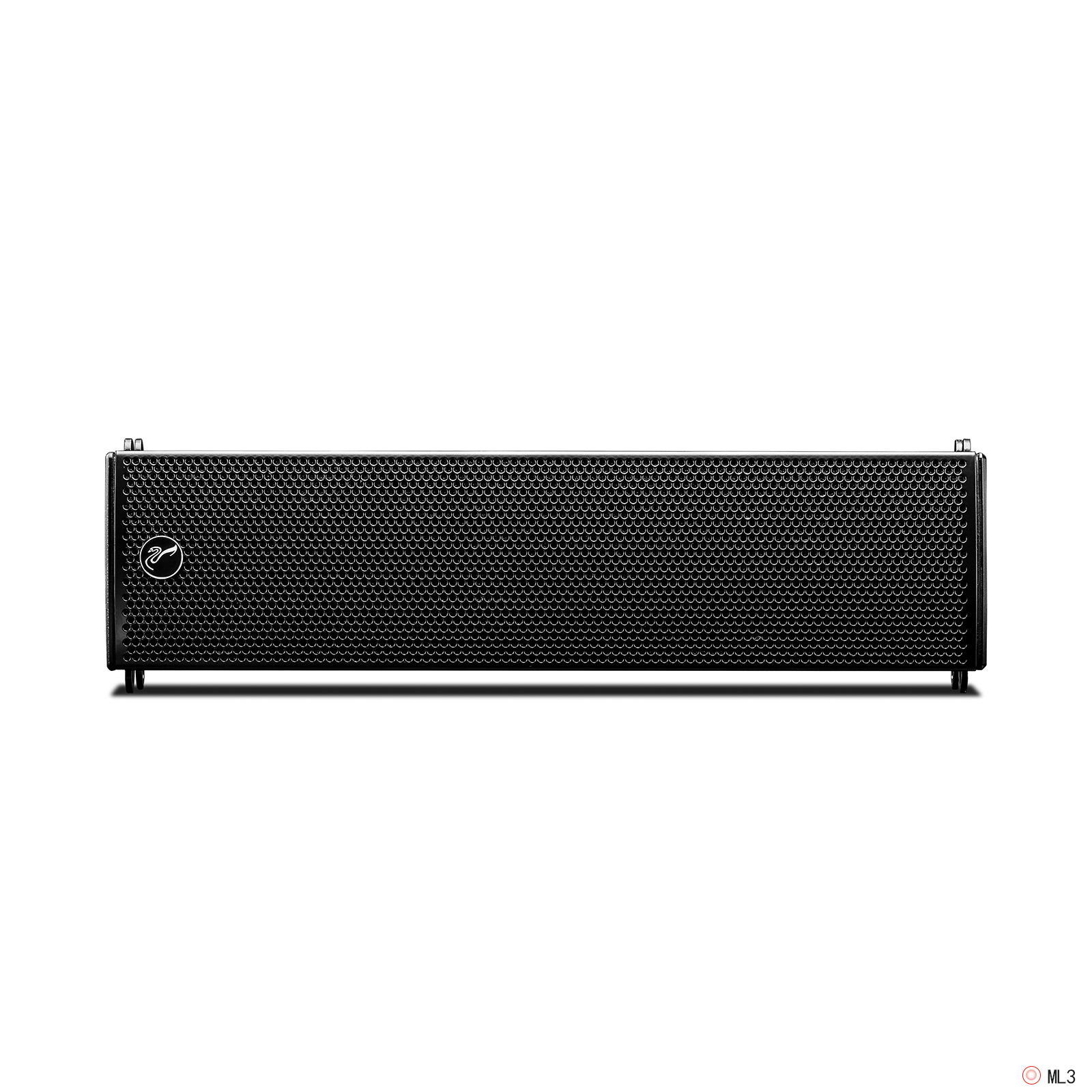

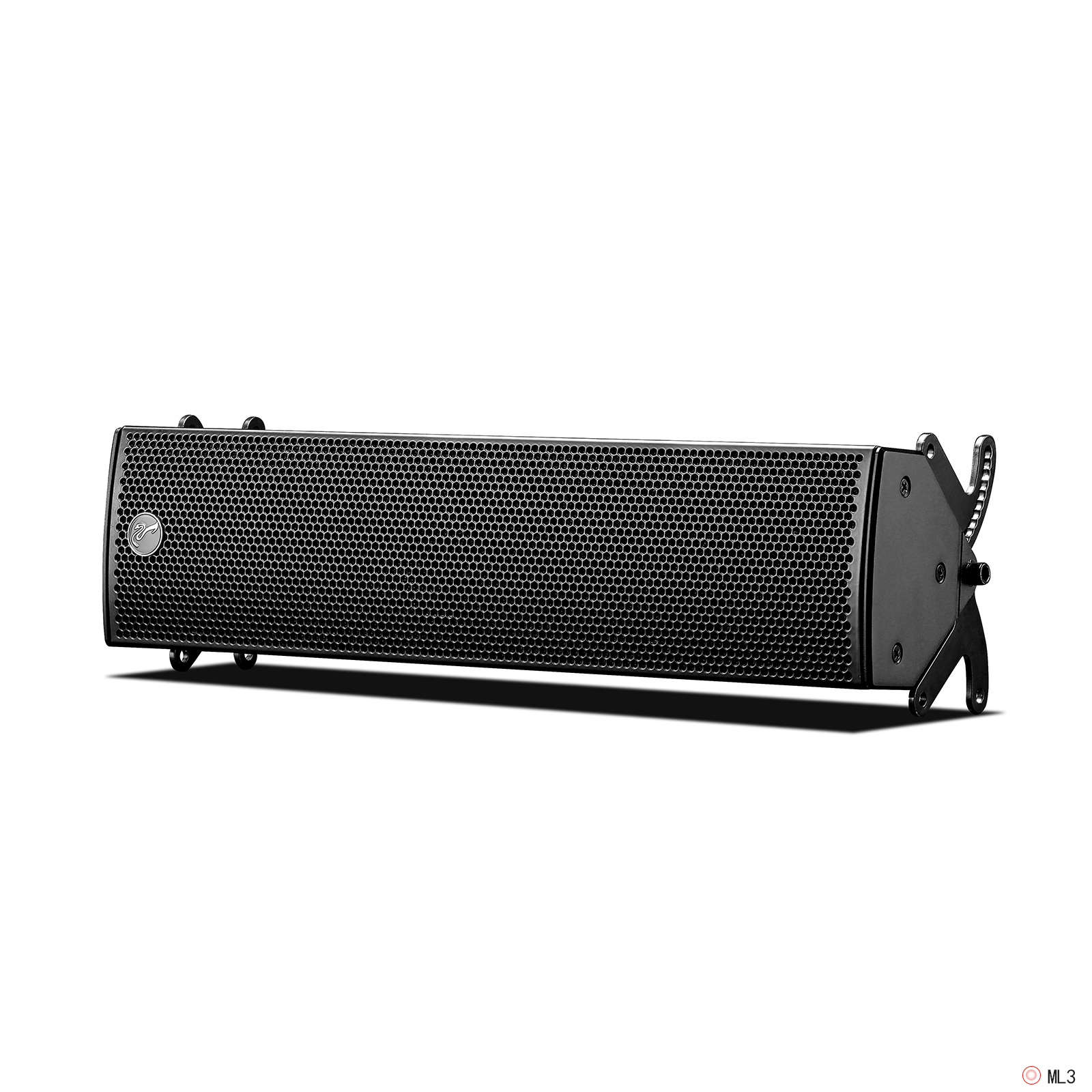

ML3 is a professional 3-inch array full-range speaker designed for professional sound reinforcement occasions such as conferences, multi-purpose halls and light bars. It adopts Swans professional 3-inch array-type line sound source mid-high-pitched combination, with built-in professional electro-acoustic technology optimized crossover network, the sound is clear and the dynamics are powerful. The speaker is equipped with a patented hanging device, which can easily and flexibly form a horizontal or vertical array. With the ML3S ultra-low frequency speakers, it can be combined into a professional three-way sound reinforcement system, and the low frequency is more powerful. The speaker is equipped with a patented hanging device, which can easily and flexibly form a horizontal or vertical array.

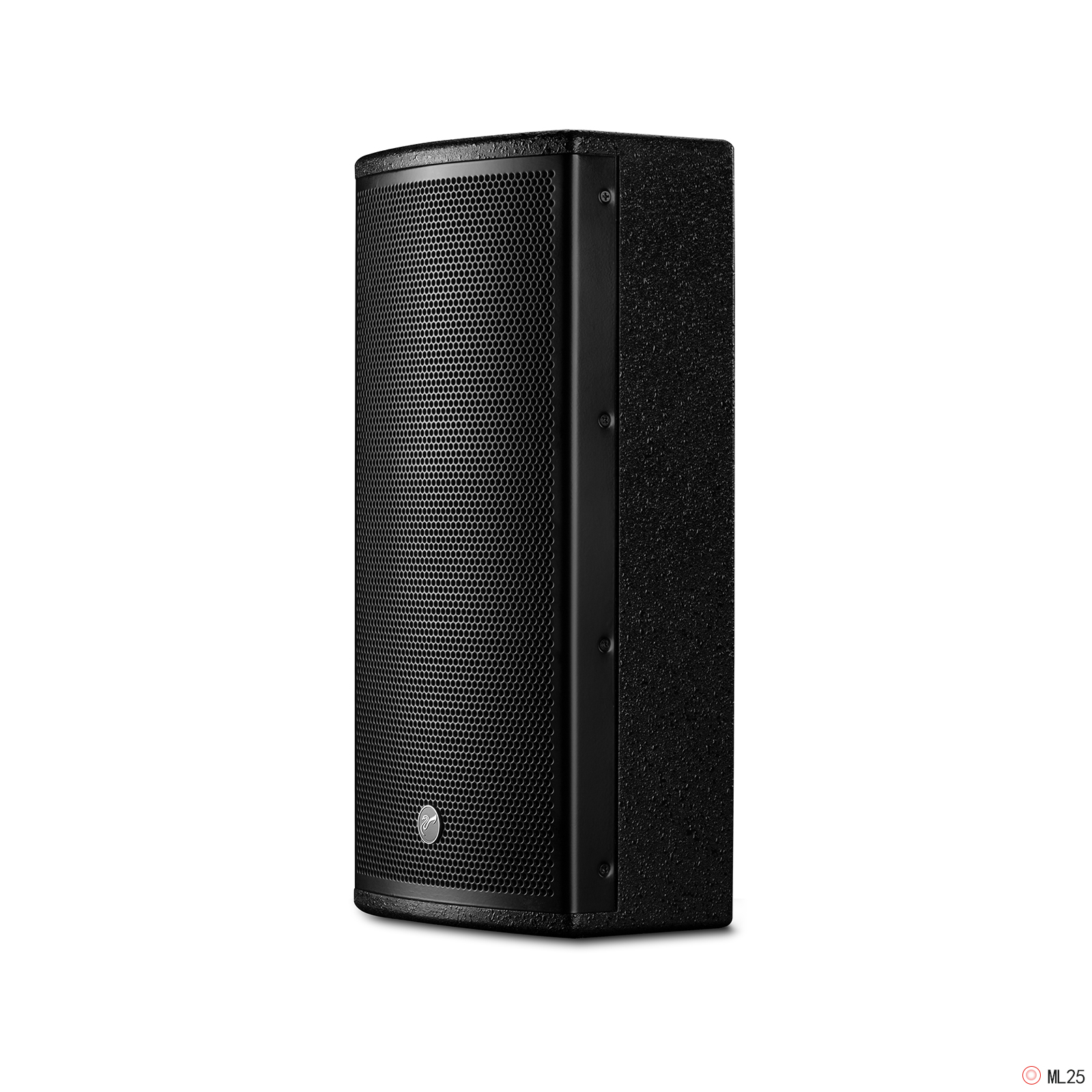

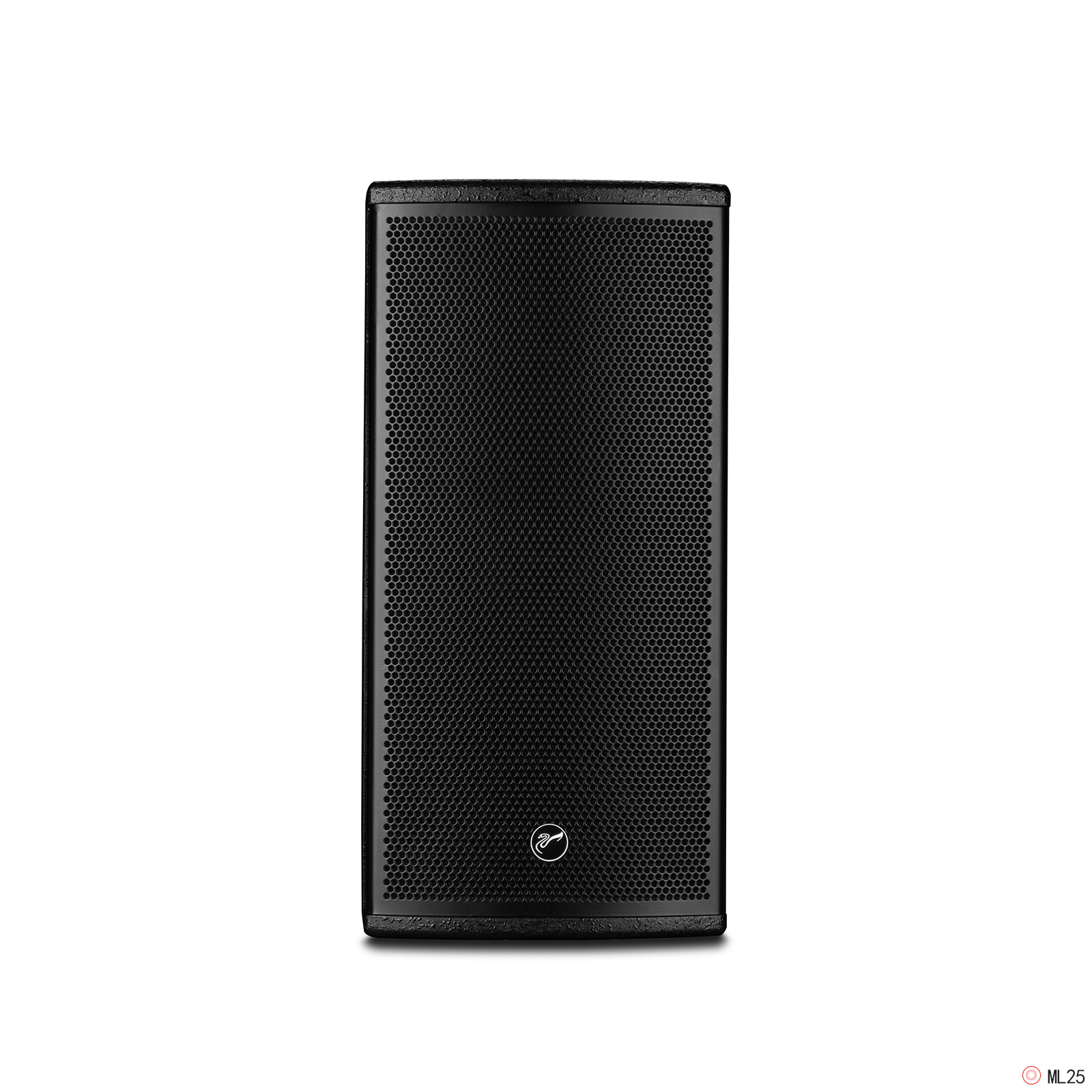

The ML25 speaker system is a built-in two-way full-range speaker, designed for professional sound reinforcement occasions such as conference rooms and multi-function halls. Using high-quality Swans electro-acoustic devices and sophisticated cabinet structure, the sound is clear, transparent and dynamic. A variety of system installation methods are designed, combined with M8 standard hoisting points and Φ5.5 four-way wall-mounted accessories, so that the system's multi-functional features can be fully utilized.

Product Parameters
Model ML3 ML3S ML25
Frequency range: 180Hz-20KHz 60Hz-250Hz 70Hz~16KHz
Rated input power:
60W(continual)
120W(program signa)
240W(continual)
250W(continual)
500W(program signal)
1000W(peak
80W(continual)
160W(program signal
320W(peak
Sensitivity: 90dB(1W/1M) 97dB(1W/1m) 92dB(1w/1m)
Max SPL:
108dB(continual)
114dB(peak)
121dB(continual
127dB(peak
111dB(continual
117dB(peak
Rated impedance: 6Ω
Coverage angle: 90d°x20° Full directive 60°×60°
Woofer: 3x3" 1×12"(75mm voice coil) 2×5.25″  (25mm  voice coil)
Tweeter: 3" cone
1×3″(cone)
Input connect: 1x Speakon NL4 2x Speakon NL4 red and black wire clip
Size(W×H×D): 400×100×112mm 398×532×472mm 194×402×180mm
N.W.(±10%) 2.7Kg 28Kg 6.5Kg
Product size


ML25
