Product Description |
|||
| GX series loudspeaker system is made of high-quality sandwich panels and coated with high-strength wear-resistant coatings, so that the system can be effectively protected during transportation or installation. High-quality molded steel mesh can effectively protect the unit and suppress harmful vibrations under high system power. This system is specially designed for slow shake bar places, and can also be used in entertainment places such as large Hi rooms, KTV private rooms, etc., and can also be used for various performances. All frequency boxes are equipped with trapezoidal angles, support bases and M8 hanging points, which are convenient for engineering installation and adapt to various uses. Each speaker has passed the standard anechoic chamber test to ensure its quality. | |||
|
Product parameters |
|||
| Model | GX10 | GX12 | GX15 |
|
Frequency response（-10dB） |
55 Hz - 20 KHz |
50 Hz - 20 KHz |
45 Hz - 20 KHz |
| Nominal directivity（-6dB） | 90（H） X 50（V）° | 90（H） X 50（V）° | 90（H） X 50（V）° |
| Maximum sound pressure level |
120dB(continual)
126dB(peak)
|
123dB(continual)
129dB(peak)
|
126dB(continual)
132dB(peak)
|
| Sensitivity | 96dB | 97dB | 99dB |
|
Rated input power |
250W(continual)
500W(program signal)
1000W(peak)
|
350W(continual)
700W(program signal)
1400W(peak)
|
450W(continual)
900W(program signal)
1800W(peak)
|
| Woofer | 1 x 10”（65mm voice coil） | 1 x 12”（75mm voice coil） | 1 x 15”（75mm voice coil） |
| Tweeter | 1 x 34mm compression driver | 1 x 44mm compression driver | 1 x 75mm compression driver |
|
Nominal Impedance |
8 Ω | 8 Ω | 8 Ω |
|
Dimensions (H x W x D) |
315×350×500mm | 358x395x572mm | 442x470x692mm |
| N.W.(±10%) | 17 kg | 24 kg | 31 kg |

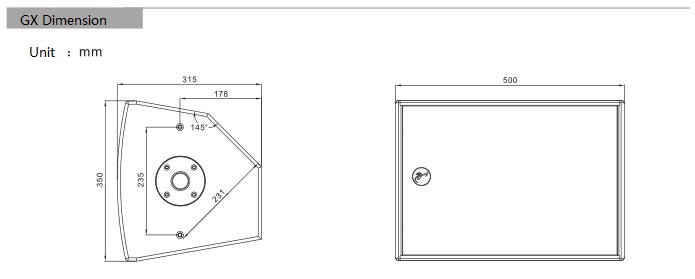

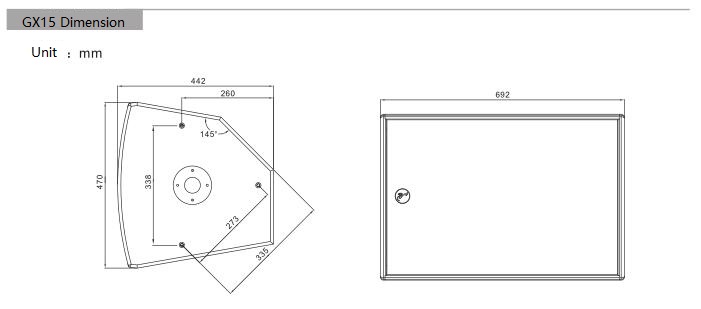

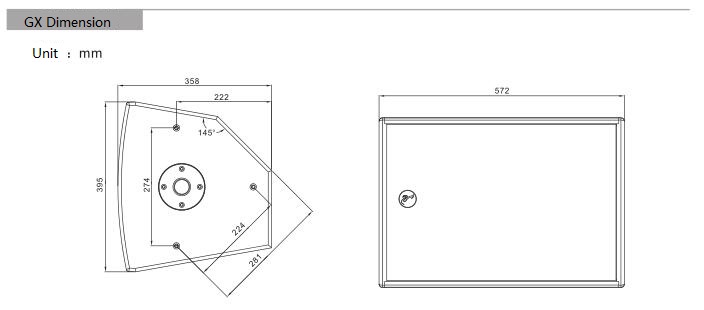

| Product Dimension | |||
|
|
|||
