| Diva6.1 Parameters | |
| Series： | Swans Flagship Series |

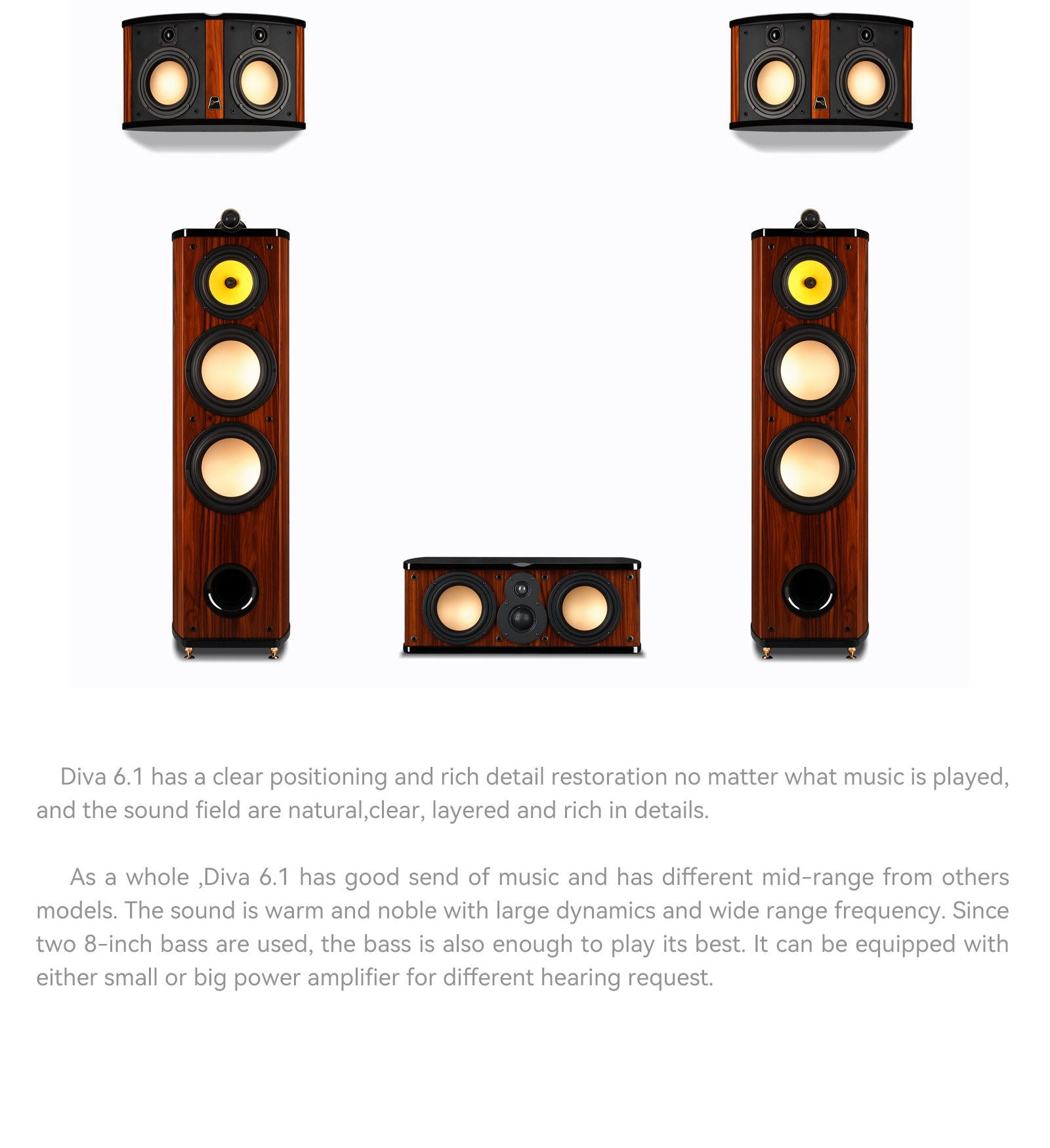

| Model： | Swans Diva 6.1 |
| Front Main Speaker | |
| Front Main Speaker | HiVi Diva6.1F |
| System Type： | 3-way 4th-order vented box system |
| Drivers Configuration： |
Two
8" woofers
|
|
6.5"
bass-midrange driver
|
|
|
28mm dome tweeter
|
|
| Frequency Range： | 33Hz - 20kHz |
| Harmonic Distortion： | 70Hz - 20kHz ≤1%(2.83V/1m) |
| Sensitivity (2.83V/1m)： | 90dB |
| Nominal Impedance： | 8Ω |
| Power Handling： | 10W - 300W |
| Dimensions (W×D×H)： | 300×388×1060mm |
| Net Weight (each)： | 32.7kg |
| Front Center Speaker | |
| Front Center Speaker | HiVi Diva C3 |
| System Type： | 3-way 2nd-order sealed speaker system |
| Drivers Configuration： |
Pro 6.5'' woofer×2
|
|
Pro 50mm Midrange
|
|
|
28mm dome tweeter
|
|
| Frequency Range： | 49Hz - 20kHz |
| Harmonic Distortion： | 80Hz - 20kHz ≤1%(2.83V/1m) |
| Sensitivity (2.83V/1m)： | 89dB |
| Nominal Impedance： | 4Ω |
| Power Handling： | 10W - 150W |
| Dimensions (W×D×H)： | 581×255×214mm |
| Net Weight (each)： | 15kg |
| Surround Speaker | |
| Surround Speaker | HiVi Diva R3 |
| System Type： | Di-pole surround speaker |
| Drivers Configuration： | Pro 6.5'' midbass×2 |
| Frequency Range： | 59Hz - 20kHz |
| Harmonic Distortion： | 90Hz - 20kHz ≤1%(2.83V/1m) |
| Sensitivity (2.83V/1m)： | 90dB |
| Nominal Impedance： | 4Ω |
| Power Handling： | 10W - 150W |
| Dimensions (W×D×H)： | 464×226 ×272mm |
| Net Weight (each)： | 12kg |
| Finish： | Luxurgy vineer cabinet |
