T6 and T8 series are the latest professional vertical line array sound reinforcement systems in hivi, designed for professional sound reinforcement occasions such as conference rooms, multi-function halls, auditoriums and small and medium-sized mobile Shang Yan. Through the correction of the wave front and the special ring-shaped patent hanging device, the same series of speakers can be conveniently and flexibly assembled to form a good array line sound source amplification. With the built-in frequency division network optimized by professional electroacoustic technology, the continuous sound pressure level is high, the dynamic state is large and the transient state is good. Both series can support a variety of combination forms, and can be expanded with ultra-low frequency speakers to form a powerful professional line array sound amplification system with natural division of near, middle and far fields.



Parameters
Speaker model	T6A	T6B	T8A	T8B
Model name	Line array full range speaker	Line array full range speaker	Line array full range speaker	Line array full range speaker
Frequency range	75Hz-22KHz	75Hz-22KHz	70Hz-22KHz	70Hz-22KHz
Rated input power	400W	400W	500W	500W
Sensitivity	99dB	99dB	100dB	100dB
Max SPL	131dB	131dB	133dB	133dB
Impedance	16Ω	16Ω	16Ω	16Ω
Coverage angle(H×V)	100×15°	100×15°	100×15°	100×15°
Woofer	2×6.5"(38mm)	2×6.5"(38mm)	2×8"(50mm)	2×8"(50mm)
Tweeter	1×44mm(Neodymium magnetism)	1×44mm(Neodymium magnetism)	1×44mm(Neodymium magnetism)	1×44mm(Neodymium magnetism)
Input connection	2×NL4 士1	2×NL4 士1	2×NL4 ±1	2×NL4 ±1
Install	Wall hanging, ring hanging pieces, Top hanging and supporting	Wall hanging, ring hanging pieces, Top hanging and supporting	Wall hanging, ring hanging pieces, Top hanging and supporting	Wall hanging, ring hanging pieces, Top hanging and supporting
Size (H×W×D)	620×199×240mm	620×199×240mm	680×245×270mm	680×245×270mm
N.W.(±10%)	13.5Kg	12Kg	17Kg	14.5K

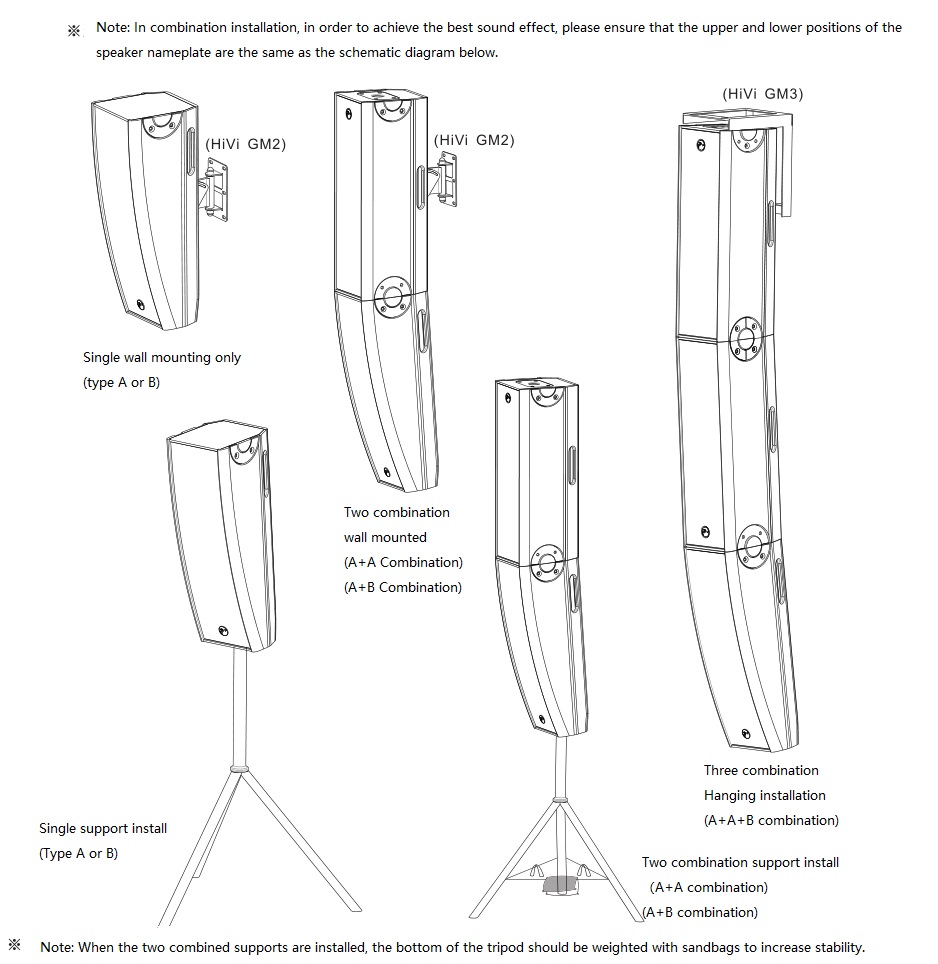

Product installation diagram

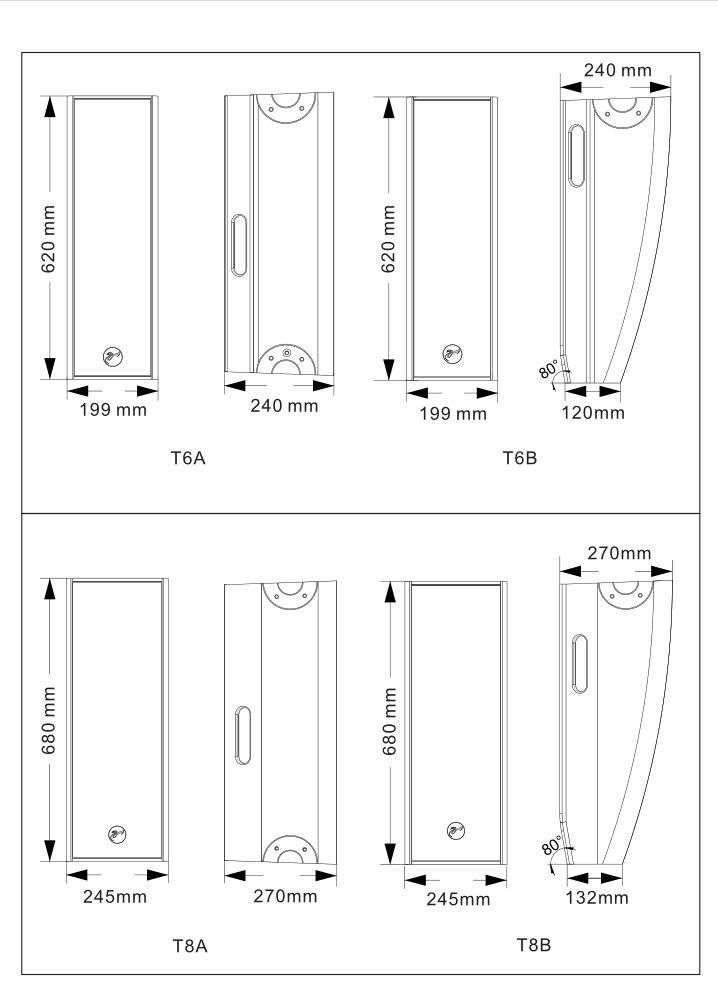

Size and dimension
