Due to the unit's excellent performance indicators, wide acoustic frequency characteristics, and natural, full and transparent sound quality characteristics, the unit is more versatile. Suitable for all kinds of Hi-end professional recording monitor speakers, advanced AV home theater system and the three-way speaker system.

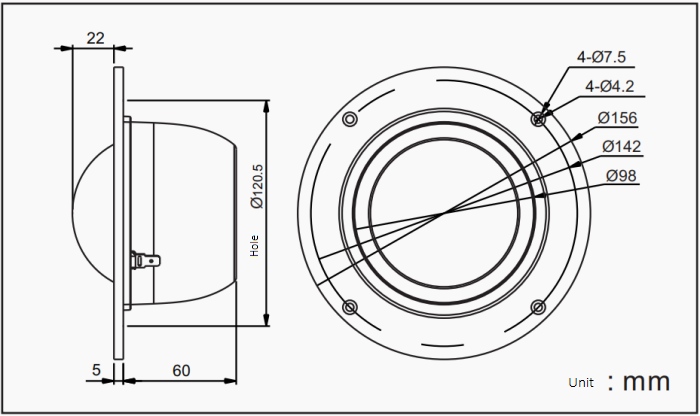

Product size
| Swan DM-7500 Parameters | |||
| Parameters | Mark | Value | Unit |
| Basic application parameters | |||
| Rated impedance | Z | 5 | Q |
| Resonant frequency | Fs | 300 | Hz |
| rated power | Pnom | 20 | W |
| Maximum power | Pmax | 120 | W |
| Sensitivity (2.83V/1m) | E | 94 | dB |
| Weight | w | 0.88 | kg |
| Voice coil | |||
| Voice coil diameter | ? | 75 | mm |
| DC Resistance | Re | 4.1 | Q |
| Voice coil wire | High temperature copper clad aluminum wire | ||
| voice coil bobbin | High temperature Aluminum | ||
| Magnetic circuit | |||
| Magnetic circuit type | Magnetic circuit type | ||
| Magnet material | Magnet material High performance NdFeB | ||
| Parameters | |||
| Recommended crossover point | >350,<6000Hz | ||
| Swan DM-7500 Parameters | |||
| Parameters | Mark | Value | Unit |
| Basic application parameters | |||
| Rated impedance | Z | 5 | Q |
| Resonant frequency | Fs | 300 | Hz |
| rated power | Pnom | 20 | W |
| Maximum power | Pmax | 120 | W |
| Sensitivity (2.83V/1m) | E | 94 | dB |
| Weight | w | 0.88 | kg |
| Voice coil | |||
| Voice coil diameter | ? | 75 | mm |
| DC Resistance | Re | 4.1 | Q |
| Voice coil wire | High temperature copper clad aluminum wire | ||
| voice coil bobbin | High temperature Aluminum | ||
| Magnetic circuit | |||
| Magnetic circuit type | Magnetic circuit type | ||
| Magnet material | Magnet material High performance NdFeB | ||
| Parameters | |||
| Recommended crossover point | >350,<6000Hz | ||
