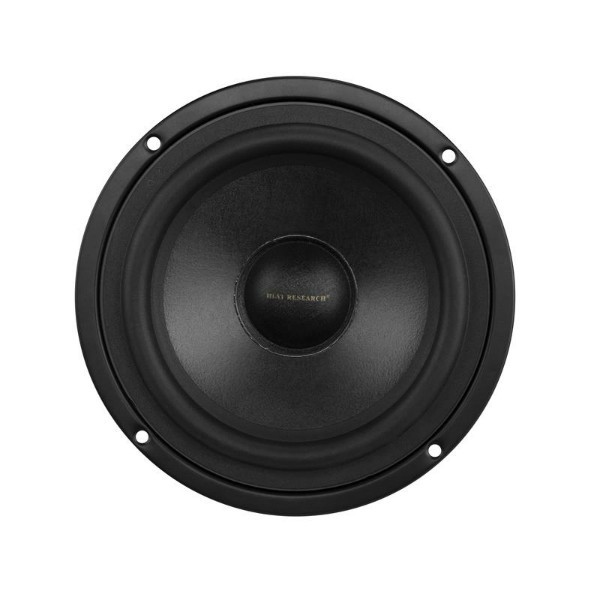

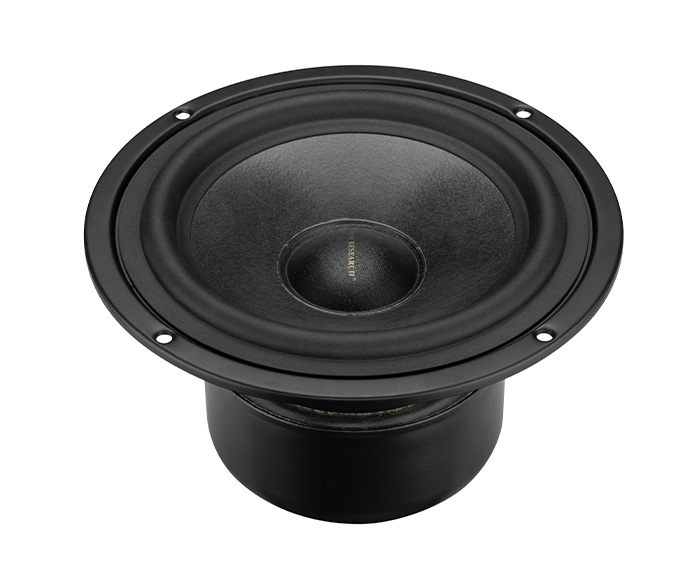

It is suitable for the low frequency unit in the Hi-Fi two-way phase inverted speaker system and the midrange unit in the three-way system.
| Swan E6.5N Parameters | |||
| Parameters | Mark | Value | Unit |
| Basic application parameters | |||
| Rated impedance | Z | 8 | Ω |
| Resonant frequency | Fs | 43 | Hz |
| Rated power | Pnom | 60 | W |
| Maximum power | Pmax | 120 | W |
| Sensitivity (2.83V/1m) | E | 88 | dB |
| Weight | W | 1.78 | kg |
| Voice coil | |||
| Voice coil diameter | ? | 25 | mm |
| DC Resistance | Re | 6.5 | Ω |
| Voice coil width | H | 14.5 | mm |
| Voice coil material | High temperature SV wire | ||
| Voice coil bobbin | AL | ||
| Magnetic circuit | |||
| Magnetic circuit type | Dual magnetic antimagnetic | ||
| Magnet material | High performance ferrite | ||
| Force coefficient (BL value) | BL | 7.14 | N/A |
| Magnetic gap height | He | 6 | mm |
| Maximum Linear Displacement | Xmax | 4.25 | mm |
| Small/Thiele Parameters | |||
| Consistency | Cms | 894.9 | uM/N |
| Mechanical Q | Qms | 1.96 | - |
| Electric Q value | Qes | 0.51 | - |
| Total Q | Qts | 0.4 | - |
| Vibration mass | Mms | 14.7 | g |
| Equivalent volume | Vas | 21 | L |
| Recommended cabinet parameters | |||
| Cabinet type | Phase inverted | ||
| Recommended net volume of box | Vb | 16.2 | L |
| Inverter tuning frequency | Fb | 51 | Hz |
| Cabinet at -3dB frequency in free field | F3 | 48 | Hz |
