Leading Small/Thiele parameter optimization design technology-convenient cabinet design!

German imported paper and fiber mixed material diaphragm, surface marbled treatment-natural and accurate sound / German fatigue-resistant and high-loss natural rubber folding ring-strong absorption of excess vibration energy / high permeability, high stability and linear centering support-improve compliance Air compression characteristics/single-magnet high-performance large magnetic circuit system-powerful linear drive source/HiVi’s symmetrical magnetic field (SMD) drive technology-high sound pressure distortion output/finite element precision computer simulation design integrated high-density aluminum basin frame -Eliminate harmful resonance / high-power, high-temperature, no eddy current loss AL voice coil skeleton-guarantee of high-quality bass.

Voice characteristics:

Naturally accurate, highly analytical, full of vitality and dynamic!

It is suitable for the low frequency unit in the Hi-Fi two-way phase inverted speaker system and the midrange unit in the three-way system.

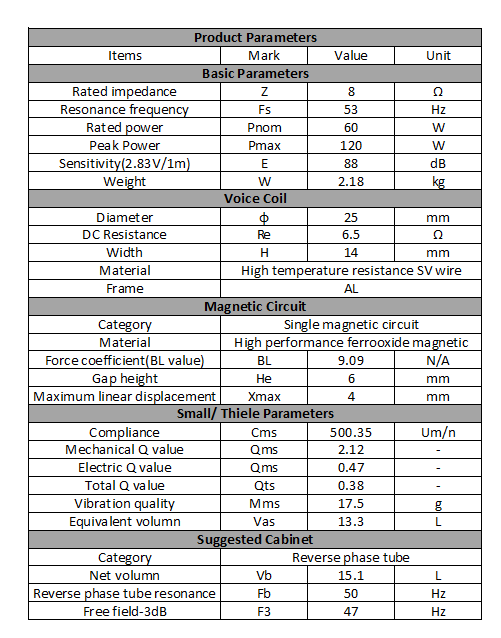

惠威 C6.5 技術參數
參數名稱	符號	數值	單位
基本應用參數
額定阻抗	Z	8	Ω
諧振頻率	Fs	53	Hz
額定功率	Pnom	60	W
最大功率	Pmax	120	W
靈敢度(283V/1m）	E	88	dB
重量	W	2.18	kg
音圈
音圈直徑	?	25	mm
直流電阻	Re	6.5	Ω
音圈卷寬	H	14	mm
音圈線材	耐高溫SV線
音圈骨架	AL
磁路
磁路型式	單磁式大磁路
磁體材料	高性能鐵氧磁
力系數(BL值)	BL	9.09	N/A
磁隙高度	He	6.0	mm
最大線性位移	Xmax	4.9	mm
Smal/ Thiele參數
順性	Cms	500.35	uM/N
機械Q值	Qms	2.12	-
電Q值	Qes	0.47	-
總Q值	Qts	0.38	-
振動質量	Mms	17.5	g
等效容積	Vas	13.3	L
推薦箱體參數
箱體類型	倒相式
推薦箱體凈客積	Vb	15.1	L
倒相箱調諧頻率	Fb	50	Hz
箱體在自由場-3dB頻率	F3	47	Hz
