Swan 2.3B Parameter
|
||
| Series： | Swans Flagship series | |
| Model： | Swans2.3B | |

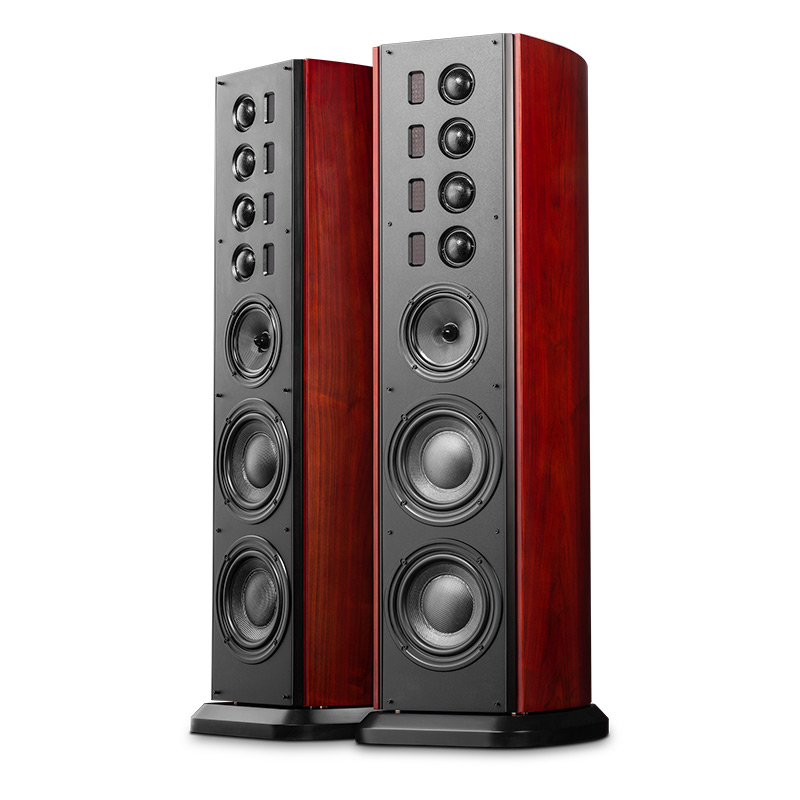

| Front Main Speaker | ||
| Front Main Speaker | Front Main Speak Swans 2.3B | |
| System Type： | 3-way 4th-order vented box system | |
| Drivers Configuration： |
Four
6.5" bass-midranges
|
|
|
Sixteen
2” dome midrange drivers
|
||
|
Sixteen
isodynamic ribbon tweeters
|
||
| Frequency Range： | 40Hz - 20kHz | |
| Harmonic Distortion： | 50Hz - 20kHz ≤1%(2.83V/1m) | |
| Sensitivity (2.83V/1m)： | 90dB | |
| Nominal Impedance： | 16Ω | |
| Power Handling： | 10W - 500W | |
| Dimensions (W×D×H)： | 34"×18.1"×76.0" | |
| Net Weight (each)： | 248.0 lbs | |

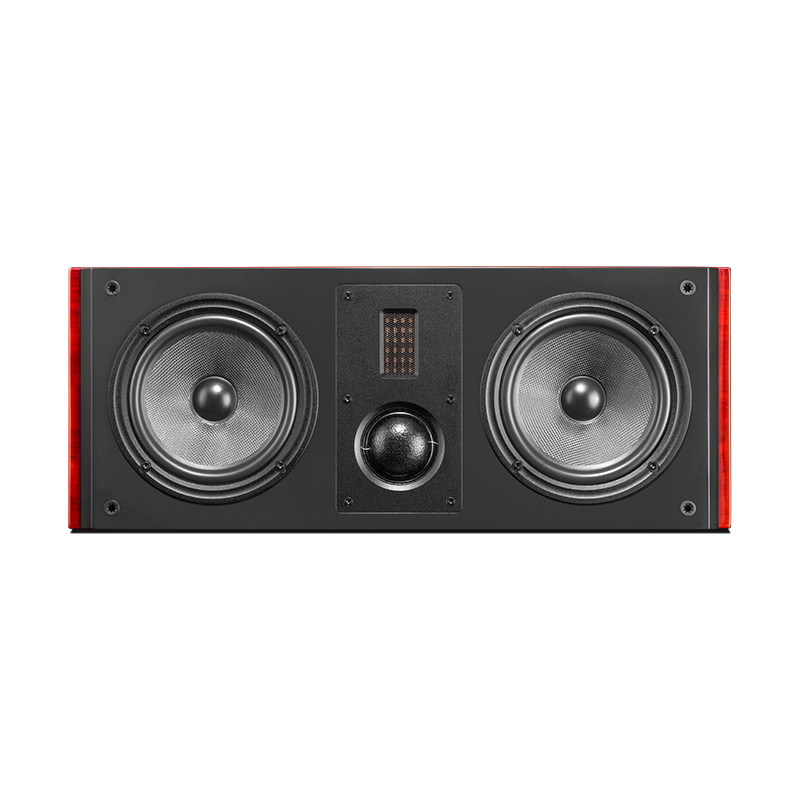

| Front Center Speaker | ||
| Front Center Speaker | Front Center Speaker Swans 2.3C+ | |
| System Type： | 3-way 4th-order vented box system | |
| Drivers Configuration： |
Four
6.5" bass-midrange drivers
|
|
|
1.1”
soft dome tweeter
|
||
|
two
isodynamic ribbon tweeters
|
||
| Frequency Range： | 40Hz - 20kHz | |
| Harmonic Distortion： | 55Hz - 20kHz ≤1%(2.83V/1m) | |
|
Bitmap
|
90dB | |
|
Sensitivity
(2.83V/1m)：
|
||
| Nominal Impedance： | 8Ω | |
| Power Handling： | 10W - 320W | |
| Dimensions (W×D×H)： | 40.2"×13.4"×12.1" | |
| Net Weight： | 72.7 lbs | |

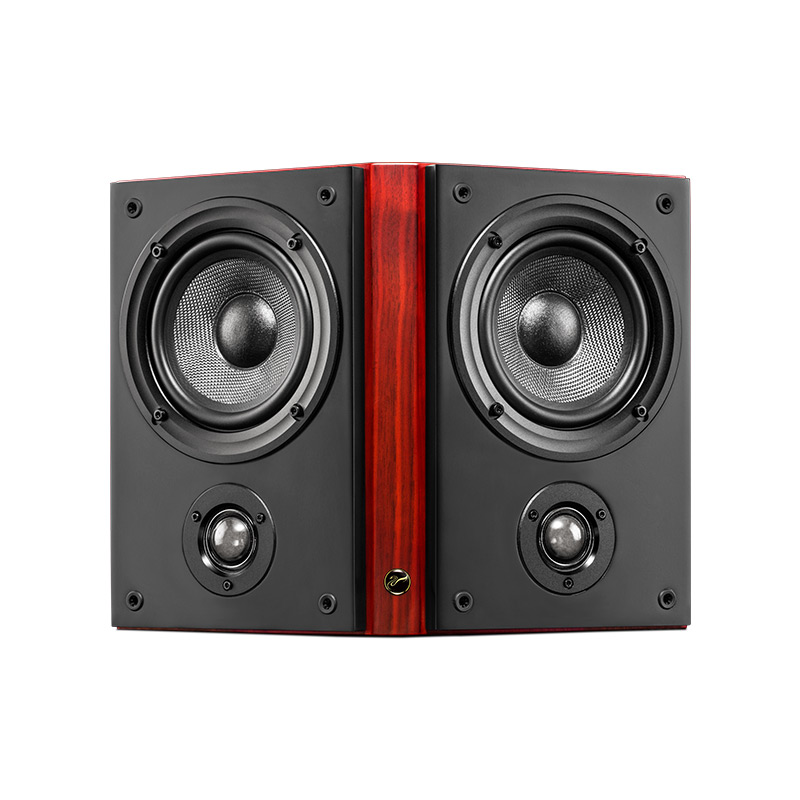

| Surround Speaker | ||
| Surround Speaker | Surround Speaker F5R+ | |
| System Type： | Di-pole surround speakers | |
| Drivers Configuration： |
Two
6.5" bass-midrange drivers,
|
|
|
two
1.1” soft dome tweeters
|
||
| Frequency Range： | 55Hz - 20kHz | |
| Harmonic Distortion： | 53Hz - 20kHz ≤1%(2.83V/1m) | |
| Sensitivity (2.83V/1m)： | 87dB | |
| Nominal Impedance： | 8Ω | |
| Power Handling： | 10W - 150W | |
| Dimensions (W×D×H)： | 19.9"×11.4"×9.3" | |
| Net Weight (each)： | 28.7 lbs | |
| Finish： | Wood veneer and multi coat piano lacquer with aluminium ring | |
| Surround Speaker | ||
| Surround Speaker | Surround Speaker F5R+ | |
| System Type： | Di-pole surround speakers | |
| Drivers Configuration： |
Two
6.5" bass-midrange drivers
|
|
|
two
1.1” soft dome tweeters
|
||
| Frequency Range： | 55Hz - 20kHz | |
| Harmonic Distortion： | 53Hz - 20kHz ≤1%(2.83V/1m) | |
| Sensitivity (2.83V/1m)： | 87dB | |
| Nominal Impedance： | 8Ω | |
| Power Handling： | 10W - 150W | |
| Dimensions (W×D×H)： | 19.9"×11.4"×9.3" | |
| Net Weight (each)： | 28.7 lbs | |
| Finish： | Wood veneer and multi coat piano lacquer with aluminium ring | |
| Active Subwoofer | ||
| Active Subwoofer | Swans Sub15B | |
| System Type： | 1-way sealed active subwoofer | |
| Drivers Configuration： | 15" subwoofer | |
| Rated Power： | 1000W | |
|
Signal-to-Noise：
|
>100dB(Unweigthed) | |
| Input Sensitivity： | 100mV | |
| Input Impedance： | 22k? | |
| Dimensions (W×D×H)： | 22.9"×21.1"×18.7" | |
| Net Weight (each)： | 75.0 lbs | |
