·Product Description

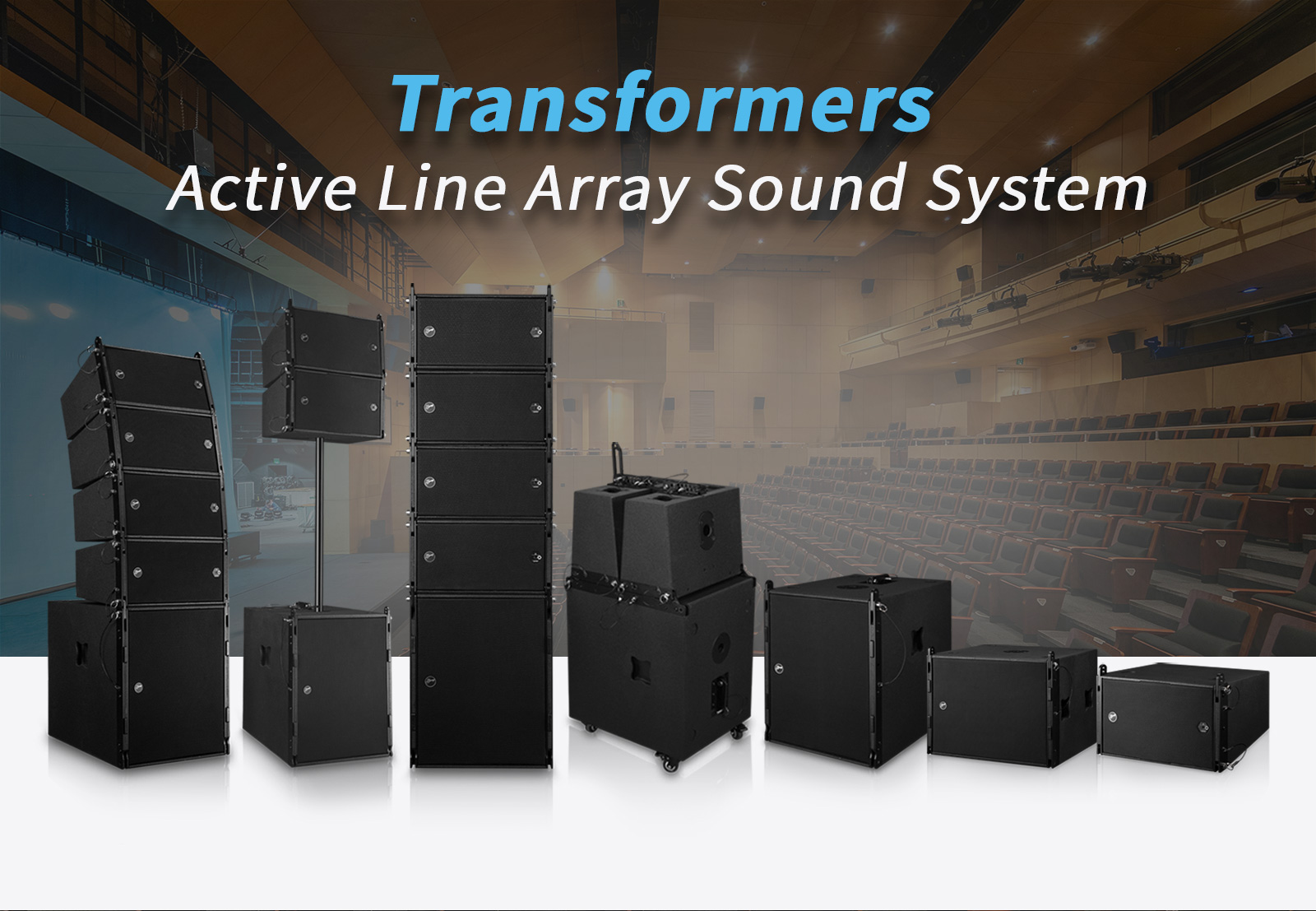

The full name of the TR series is Transformer Active Line Array Audio. It is an active and fast-installed line array audio system integrated with transportation and shipment. It is equipped with multi-channel network transmission and WiFi wireless control. It also has a built-in high-speed DSP processor imported from ADI. And modular design of high-quality power amplifier modules. It is a compact active line array speaker system newly developed by Swans. It adopts a special three-point suspension system structure and a low-frequency speaker with pulley function, which can be easily and quickly assembled, installed, moved and transported. The passive full-range speaker adopts a built-in crossover circuit and is matched with three optional active low-frequency speaker systems. High, the dynamic is large, and the transient is good. With the built-in professional electro-acoustic technology optimized frequency division network, the vertical ceiling surface and ground sound reflection is small, the sound reproduction is clear, and the dynamics are strong.
·Model Description
|
TR Series Product Model |
||
|
Product model |
Product name |
Easy system configuration |
|
TR600Sa |
Active subwoofer |
The active subwoofer is equipped with 2*1400W modules, one channel pushes the subwoofer, and one channel pushes 4 TR600 full-frequency arrays; the full frequency is 2*6 inch mid-bass + 44-core rubidium magnetic tweeter unit full-frequency speaker; subwoofer It is a 2*12 inch long stroke woofer. |
|
TR600Sd |
DSP version active subwoofer |
|
|
TR600Se |
Dante version active subwoofer |
|
|
|
||
|
TR800Sa |
Active subwoofer |
The active subwoofer is equipped with 2*1400W modules, one channel pushes the subwoofer, and one channel pushes 4 TR800 full-frequency arrays; the full frequency is 2*8 inch mid-bass + 2*44 core rubidium magnetic tweeter unit full-frequency speaker; The subwoofer is a 15-inch long-stroke woofer. |
|
TR800Sd |
DSP version active subwoofer |
|
|
TR800Se |
Dante version active subwoofer |
|
|
|
||
|
TR1000Sa |
Active subwoofer |
The active subwoofer is equipped with 4*1400W modules, 1 channel pushes 18-inch subwoofer, 1 channel pushes TR1000S mid-bass speaker, and the remaining two channels push 4 TR1000 full-range arrays or 2 TR1000 full-range arrays + 2 return Listening speakers; full frequency is 2*10 inch mid-bass + 2*44 core rubidium magnetic tweeter full-frequency speaker; mid-bass speaker is 2*12 inch unit, subwoofer is 18 inch long-stroke woofer. |
|
TR1000Sd |
DSP version active subwoofer |
|
|
TR1000Se |
Dante version active subwoofer |
|
|
|
||
|
TR8000Sa |
Active subwoofer |
The active subwoofer is equipped with a 4*1400W power amplifier module, of which 2 channels respectively push a 18-inch long-stroke subwoofer, and the other 2 channels respectively push 2 return speakers and 2 lip fill speakers. |
|
TR8000Sd |
DSP version active subwoofer |
|
|
TR8000Se |
Dante version active subwoofer |
|
·Product Parameters
|
Speaker model |
TR600 |
TR800 |
|
Speaker type |
Passive full-range line array speakers |
Passive full-range line array speakers |
|
Speaker power |
400W(continual) |
500W(continual) |
|
Nominal impedance |
16 Ω |
16 Ω |
|
Frequency Range |
90Hz-20KHz |
80Hz-20KHz |
|
Sensitivity |
99dB |
100dB |
|
Max SPL |
129dB |
131dB |
|
Coverage angle(H×V) |
90×10° |
90×10° |
|
Woofer |
2×6.5"(38mm voice coil) |
2×8"(50mm voice coil) |
|
Tweeter |
1×44mm(Neodymium magnetic driver) |
2×44mm(Neodymium magnetic driver) |
|
Input connection |
2×NL4 ±1 |
2×NL4 ±1 |
|
Install |
hanging, stacking, supporting |
hanging, stacking, supporting |
|
Dimensions (W×H×D mm) |
405×243.8×335mm |
426×286.9 ×391mm |
|
N.W.(±10%) |
13KG |
17KG |
|
G.W. (±10%) |
17KG |
20KG |
|
Carton size(mm) |
407×311×510mm |
462×355×531mm |
|
Speaker model |
TR600Sa |
TR800Sa |
|
Speaker catalogue |
Passive full-range line array speakers |
Passive full-range line array speakers |
|
Frequency range |
40Hz-250Hz |
35Hz-250Hz |
|
Max SPL |
134dB |
135dB |
|
Woofer |
2×12"(65mm voice coil) |
1×15"(75mm voice coil) |
|
Input connection |
Balance XLR-L/R |
Balance XLR-L/R |
|
Install |
hanging, stacking |
hanging, stacking |
|
Active module power |
1×1400W+1×1400W( power output) |
1×1400W+1×1400W(power output) |
|
SNR |
≥108dB |
≥108dB |
|
Damping coefficient |
≥800 |
≥800 |
|
Rated source electromotive force |
1.8V |
1.8V |
|
Input impedance (balanced/unbalanced) |
10KΩ/20KΩ |
10KΩ/20KΩ |
|
Total harmonic distortion |
≤0.05% |
≤0.05% |
|
Cool down |
From top to button |
From top to button |
|
Protection function |
Soft Start/DC/Short Circuit/Overload/Peak Clipping |
Soft Start/DC/Short Circuit/Overload/Peak Clipping |
|
Power supply requirements (national standard) |
≥1.5mm2 power cable (220V) |
≥1.5mm2 power cable(220V) |
|
Dimensions (W×H×D mm) |
405×531×596.8mm |
426×601×737mm |
|
N.W.(±10%) |
35.5KG |
43KG |
|
G.W.(±10%) |
37KG |
46KG |
|
Carton size(mm) |
707×505×630m |
853×536×710mm |
|
Speaker model |
TR600Sd |
TR600Se |
TR800Sd |
TR800Se |
|
Speaker category |
Active low frequency line array speakers |
Active low frequency line array speakers |
||
|
Frequency Range |
40Hz-250Hz |
35Hz-250Hz |
||
|
Max SPL |
134dB |
135dB |
||
|
Woofer |
2×12"(65mm voice coil) |
1×15"(75mm voice coil) |
||
|
Input connection |
Balance XLR-L/R |
Balance XLR-L/R |
||
|
Install |
hanging, stacking |
hanging, stacking |
||
|
Active module power |
1×1400W+1×1400W(power output) |
1×1400W+1×1400W(power output) |
||
|
DSP function |
Built-in high conversion rate DSP processing chip (including PC software) |
Built-in high conversion rate DSP processing chip (including PC software) |
||
|
Network transmission and control functions |
No |
Yes |
No |
Yes |
|
SNR |
≥102dB |
≥102dB |
||
|
Damping coefficient |
≥800 |
≥800 |
||
|
Amplifier module frequency response |
20Hz-20KHz |
20Hz-20KHz |
||
|
Rated source electromotive force |
0.775V |
0.775V |
||
|
Input impedance (balanced/unbalanced) |
10KΩ/20KΩ |
10KΩ/20KΩ |
||
|
Total harmonic distortion |
≤0.05% |
≤0.05% |
||
|
Cool down |
From top to button |
From top to button |
||
|
Protection function |
Soft Start/DC/Short Circuit/Overload/Peak Clipping |
Soft Start/DC/Short Circuit/Overload/Peak Clipping |
||
|
Power supply requirements (national standard) |
≥1.5mm2 power cable (220V) |
≥1.5mm2電源線(220V) |
||
|
Dimensions (W×H×D mm) |
405×531×596.8mm |
426×601×737mm |
||
|
N.W.(±10%) |
35.5KG |
43KG |
||
|
G.W.(±10%) |
37KG |
46KG |
||
|
Carton size(mm) |
707×505×630mm |
853×536×710mm |
||
|
Speaker model |
TR1000Sa |
TR1000Sd |
TR1000Se |
|
Speaker category |
Active low frequency line array speakers |
Active low frequency line array speakers |
|
|
Frequency range |
30Hz-250Hz |
30Hz-250Hz |
|
|
Max SPL |
138dB |
138dB |
|
|
Woofer |
1×18"(100mm voice coil) |
1×18"(100mm voice coil) |
|
|
Input connection |
Balance XLR-L/R |
Balance XLR-L/R |
|
|
Install |
hanging, stacking |
hanging, stacking |
|
|
Active module power |
1×1400W+3×1400W(power output） |
1×1400W+3×1400W(power output) |
|
|
DSP function |
No DSP |
Built-in high conversion rate DSP processing chip (including PC software) |
|
|
Network transmission and control functions |
NO |
NO |
Yes |
|
SNR
(1KHz,0.775V A-Weighted)
|
≥108dB |
≥102dB |
|
|
Damping coefficient |
≥800 |
≥800 |
|
|
Amplifier module frequency response |
20Hz-20KHz |
20Hz-20KHz |
|
|
Rated source electromotive force |
1.8V |
0.775V |
|
|
Input impedance (balanced/unbalanced) |
10KΩ/20KΩ |
10KΩ/20KΩ |
|
|
Total harmonic distortion |
≤0.05% |
≤0.05% |
|
|
Cool down |
From top to button |
From top to button |
|
|
Protection function |
Soft Start/DC/Short Circuit/Overload/Peak Clipping |
Soft Start/DC/Short Circuit/Overload/Peak Clipping |
|
|
Power supply requirements (national standard) |
≥1.5mm2 power cable (220V) |
≥1.5mm2 power cable(220V) |
|
|
Dimensions (W×H×D mm) |
550×650×750mm |
550×650×750mm |
|
|
N.W.(±10%) |
62.5KG |
62.5KG |
|
|
G.W.(±10%) |
65.5KG |
65.5KG |
|
|
Carton size(mm) |
944×670×810mm |
944×670×810mm |
|
|
Speaker model |
TR1000 |
TR1000S |
TR8000S |
|
Speaker category |
Passive full-range line array speakers |
Passive full-range line array speakers |
Passive full-range line array speakers |
|
Power |
600W(continual) |
600W(continual) |
1400W( continual) |
|
Nominal impedance |
8 Ω |
4Ω |
4Ω |
|
Frequency range |
70Hz-20KHz |
38Hz-180Hz |
30Hz-250Hz |
|
Sensitivity |
102dB |
99dB |
102dB |
|
Max SPL |
136dB |
132dB |
140dB |
|
Coverage angle(H×V) |
90×10° |
omnidirectional |
omnidirectional |
|
Woofer |
2×10"(65mm voice coil) |
2×12"(65mm voice coil) |
2×18"(100mm voice coil) |
|
Tweeter |
2×44mm(Neodymium magnetic driver) |
|
|
|
Input connection |
2×NL4 ±1 |
2×NL4 ±1 |
2×NL4 ±1 |
|
Install |
hanging, stacking, supporting |
hanging, stacking, supporting |
stacking |
|
Dimensions (W×H×D mm) |
550×331×495mm |
550×405×500.5mm |
1000×600×750mm |
|
N.W.(±10%) |
27.5KG |
32KG |
78.5KG |
|
G.W.(±10%) |
30.5KG |
35KG |
81.5KG |
|
Carton size(mm) |
586×405×671mm |
660×535×638mm |
1150×760×960mm |
|
Speaker model |
TR8000Sd |
TR8000Se |
TR8000Sa |
|
Speaker catalogue |
Active subwoofer |
Active subwoofer |
|
|
Frequency range |
30Hz-250Hz |
30Hz-250Hz |
|
|
Max SPL |
145dB |
145dB |
|
|
Woofer |
2×18"(100mm voice coil) |
2×18"(100mm voice coil) |
|
|
Input connection |
Balance XLR-L/R |
BalanceXLR-L/R |
|
|
Install |
Stacking |
Stacking |
|
|
Active module power |
2×1400W+2×1400W(power output) |
2×1400W+2×1400W(power output) |
|
|
DSP function |
Built-in high conversion rate DSP processing chip (including PC software) |
No DSP |
|
|
Network transmission and control functions |
No |
Yes |
|
|
SNR
(1KHz,0.775V A-Weighted)
|
≥102dB |
≥108dB |
|
|
Damping coefficient |
≥800 |
≥800 |
|
|
Rated source electromotive force |
0.775V |
1.8V |
|
|
Input impedance (balanced/unbalanced) |
10KΩ/20KΩ |
10KΩ/20KΩ |
|
|
Total harmonic distortion |
≤0.05% |
≤0.05% |
|
|
Cool down |
From top to button |
From top to button |
|
|
Protect function |
Soft Start/DC/Short Circuit/Overload/Peak Clipping
/distortion limiter/overheat/boot volume fade in
|
Soft Start/DC/Short Circuit/Overload/Peak Clipping
/distortion limiter/overheat/boot volume fade in
|
|
|
Power supply requirements (national standard) |
≥1.5mm2 power cable(220V) |
≥1.5mm2power cable(220V) |
|
|
Dimensions (W×H×D mm) |
1000×600×750mm |
1000×600×750mm |
|
|
N.W.(±10%) |
84KG |
84KG |
|
