Product Parameters

F8

●2 group 4-bus mixer (with USB input)

●4-way line input + 2 sets of stereo input, built-in 16 kinds of digital effects

●Built-in multi-format Bluetooth MP3 player, MP3 audio source can be transferred to the local stereo channel for tuning or mixing

●Broken 3-segment American EQ, with attenuation, 2-way AUX output. Group selection button, with monitoring function.

6-way bus (BUS): main output + two groups + monitoring room output + recording output and return

●It can independently complete the output of 6 different audio sources without external equipment.

1-way AUX external and return, dual 7-segment video equalization

●100MM long stroke fader control.

●Built-in 48V phantom power supply, built-in 80V-240V wide voltage working power supply.

(with adjustable frequency independent subwoofer output, optional cabinet side wings)

Size: 31.8X44.5X10.5

F12

2-group 4-bus mixer (with USB input)

●8-channel line input + 2 sets of stereo input, built-in 16 kinds of digital effects

●Built-in multi-format Bluetooth MP3 player, MP3 audio source can be transferred to the local stereo channel for tuning or mixing

●Broken 3-segment American EQ, with attenuation, 2-way AUX output. Group selection button, with monitoring function.

6-way bus (BUS): main output + two groups + monitoring room output + recording output and return

●It can independently complete the output of 6 different audio sources without external equipment.

1-way AUX external and return, dual 7-segment video equalization

●100MM long stroke fader control.

●Built-in 48V phantom power supply, built-in 80V-240V wide voltage working power supply.

(with adjustable frequency independent subwoofer output, optional cabinet side wings)

Size: 43.4X44.5X10.5

F16

●2 group 4-bus mixer (with USB input)

●12-way line input + 2 sets of stereo input, built-in 16 kinds of digital effects

●Built-in multi-format Bluetooth MP3 player, MP3 audio source can be transferred to the local stereo channel for tuning or mixing

●Broken 3-segment American EQ, with attenuation, 2-way AUX output. Group selection button, with monitoring function.

6-way bus (BUS): main output + two groups + monitoring room output + recording output and return

●It can independently complete the output of 6 different audio sources without external equipment.

1-way AUX external and return, dual 7-segment video equalization

●100MM long stroke fader control.

●Built-in 48V phantom power supply, built-in 80V-240V wide voltage working power supply.

(With adjustable frequency independent subwoofer output, cabinet side wings are not optional)

Size: 55X44.5X10.5

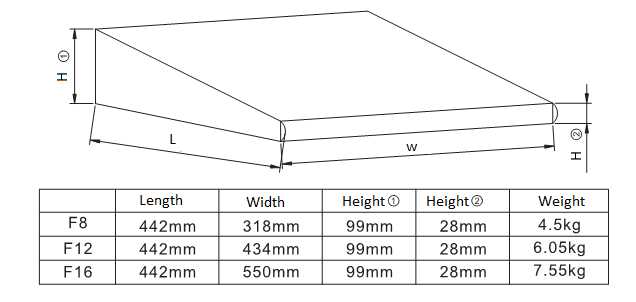

Product Size
