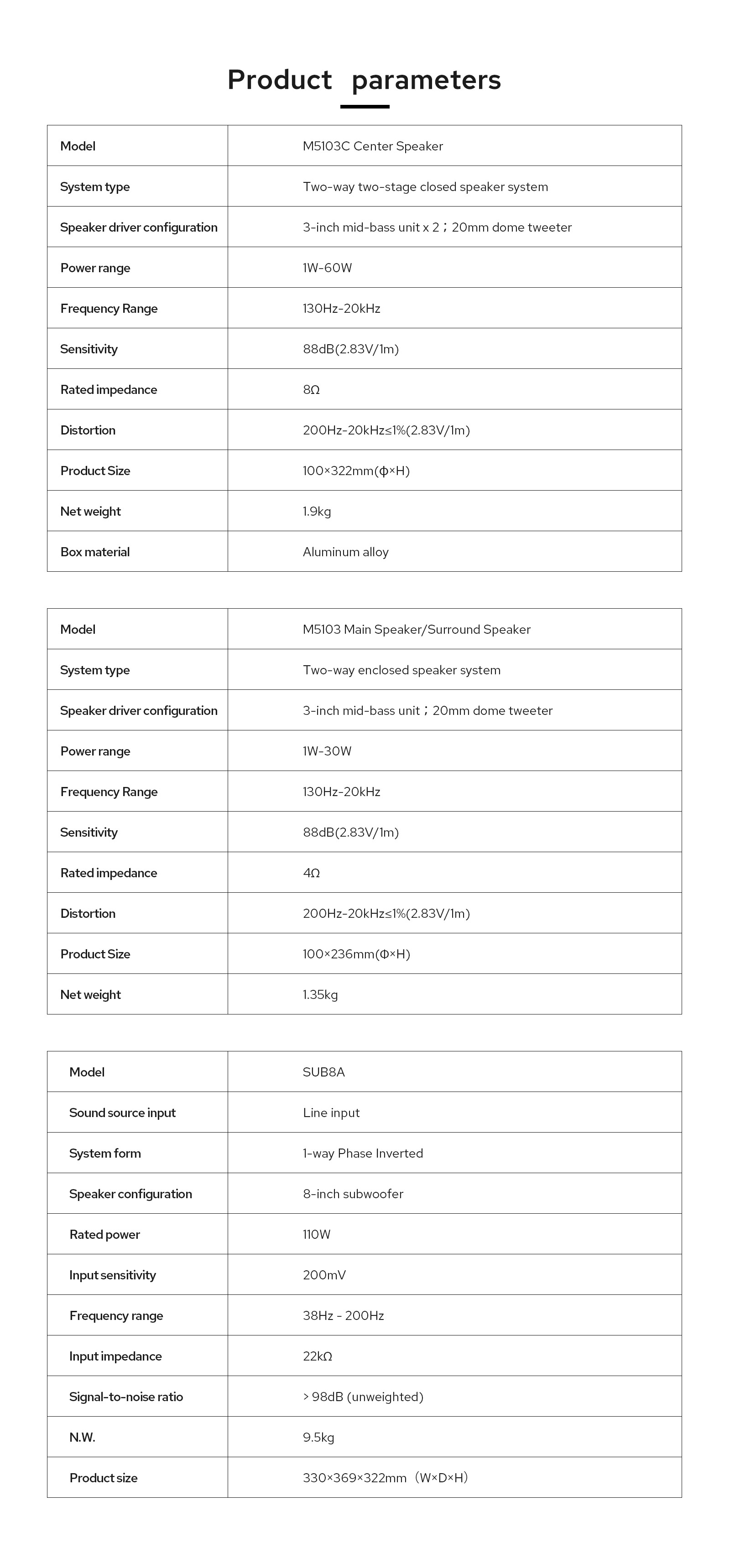

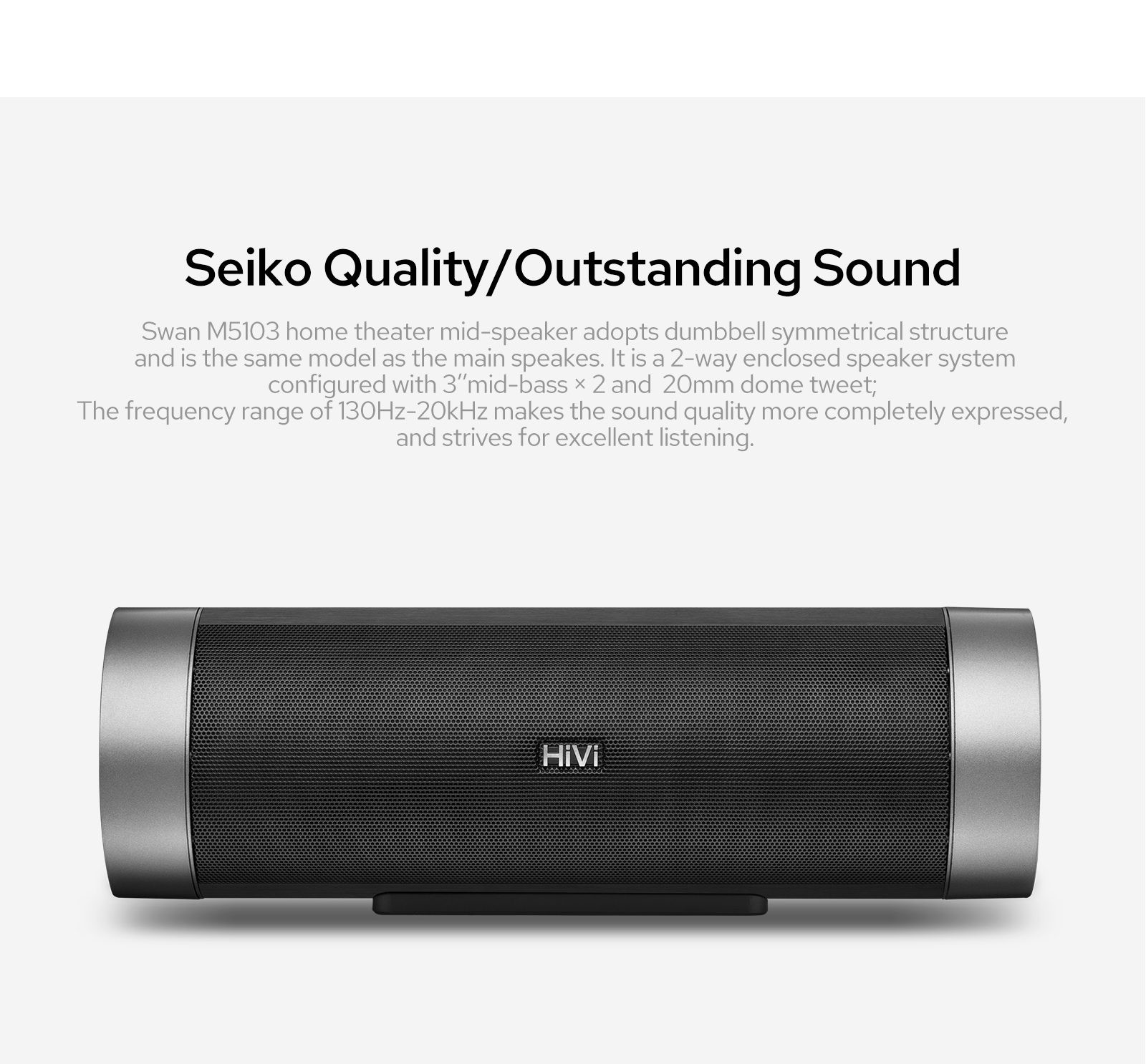

Center speaker |
|
|
Product number |
M5103C Center Speaker |
|
System type |
Two-way two-stage closed speaker system |
|
Speaker driver configuration |
3-inch mid-bass unit x 2 |
|
|
20mm dome tweeter |
|
Power range |
1W-60W |
|
Frequency Range |
130Hz-20kHz |
|
Sensitivity |
88dB(2.83V/1m) |
|
Rated impedance |
8Ω |
|
Distortion |
200Hz-20kHz≤1%(2.83V/1m) |
|
Product Size |
100×322mm(φ×H) |
|
Net weight |
1.9kg |
|

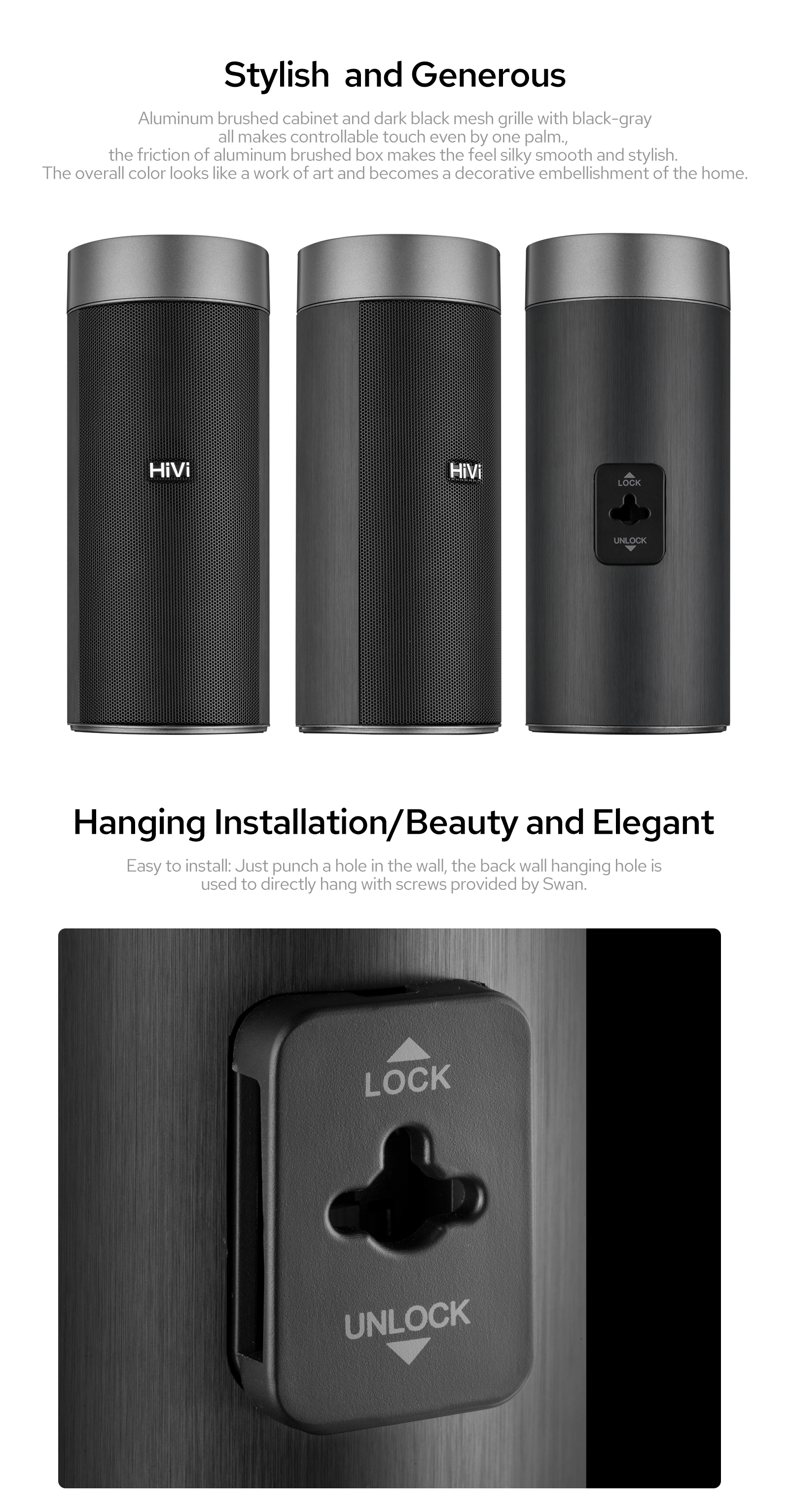

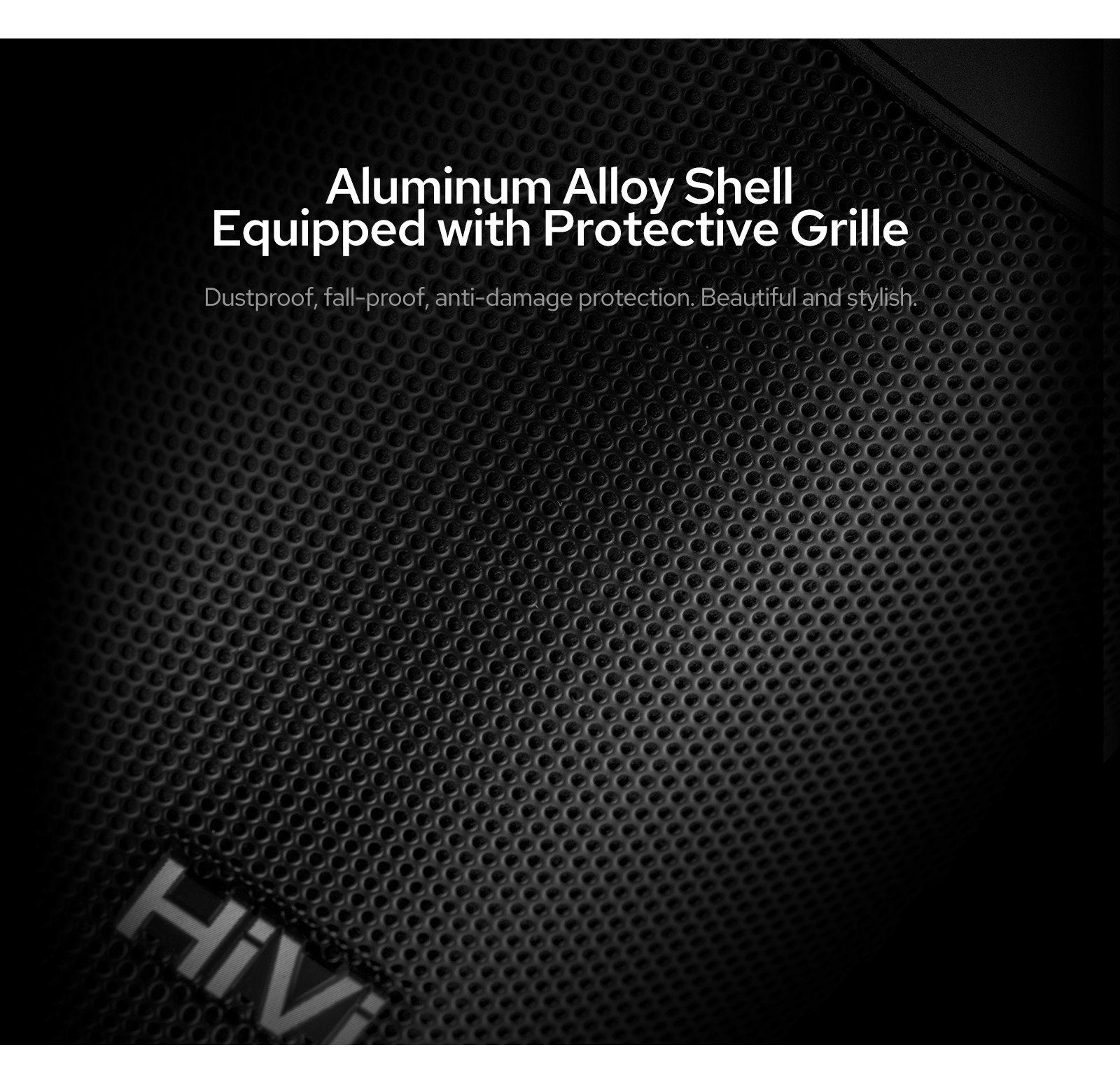

Box material |
Aluminum alloy |
|
M5013 Parameters |
|
|
Main/surround speaker |
|
|
Model |
M5103 Main Speaker/Surround Speaker |
|
System type |
Two-way enclosed speaker system |
|
Speaker driver configuration |
3-inch mid-bass unit |
|
20mm dome tweeter |
|
|
Power range |
1W-30W |
|
Frequency Range |
130Hz-20kHz |
|
Sensitivity |
88dB(2.83V/1m) |
|
Rated impedance |
4Ω |
|
Distortion |
200Hz-20kHz≤1%(2.83V/1m) |
|
Product Size |
100×236mm(φ×H) |
|
Net weight |
1.35kg |

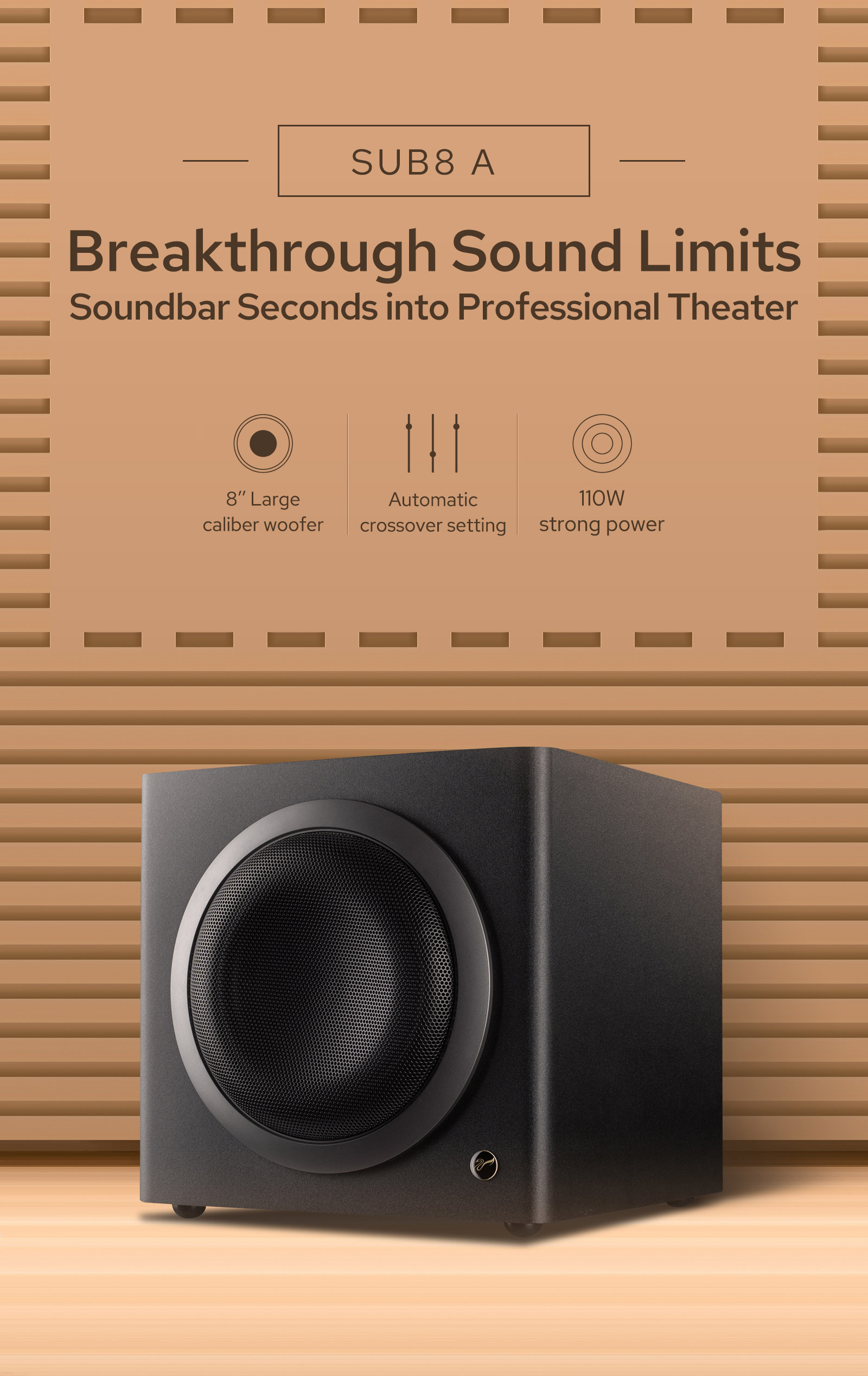

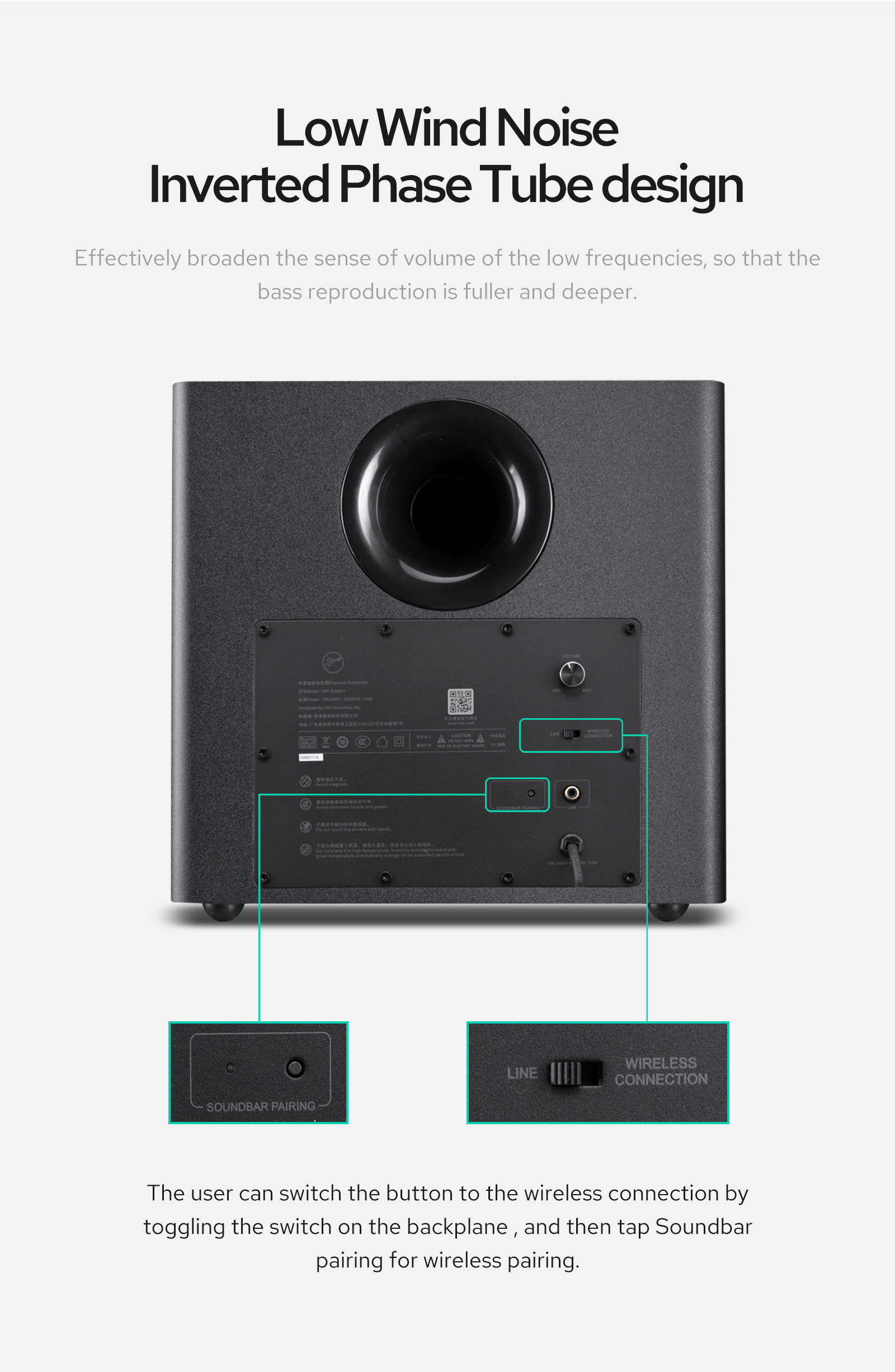

| Active subwoofer | |
| Model | SUB8A+ |
| Input | Line input,5.8G input |
| System | one-way enclosed system |

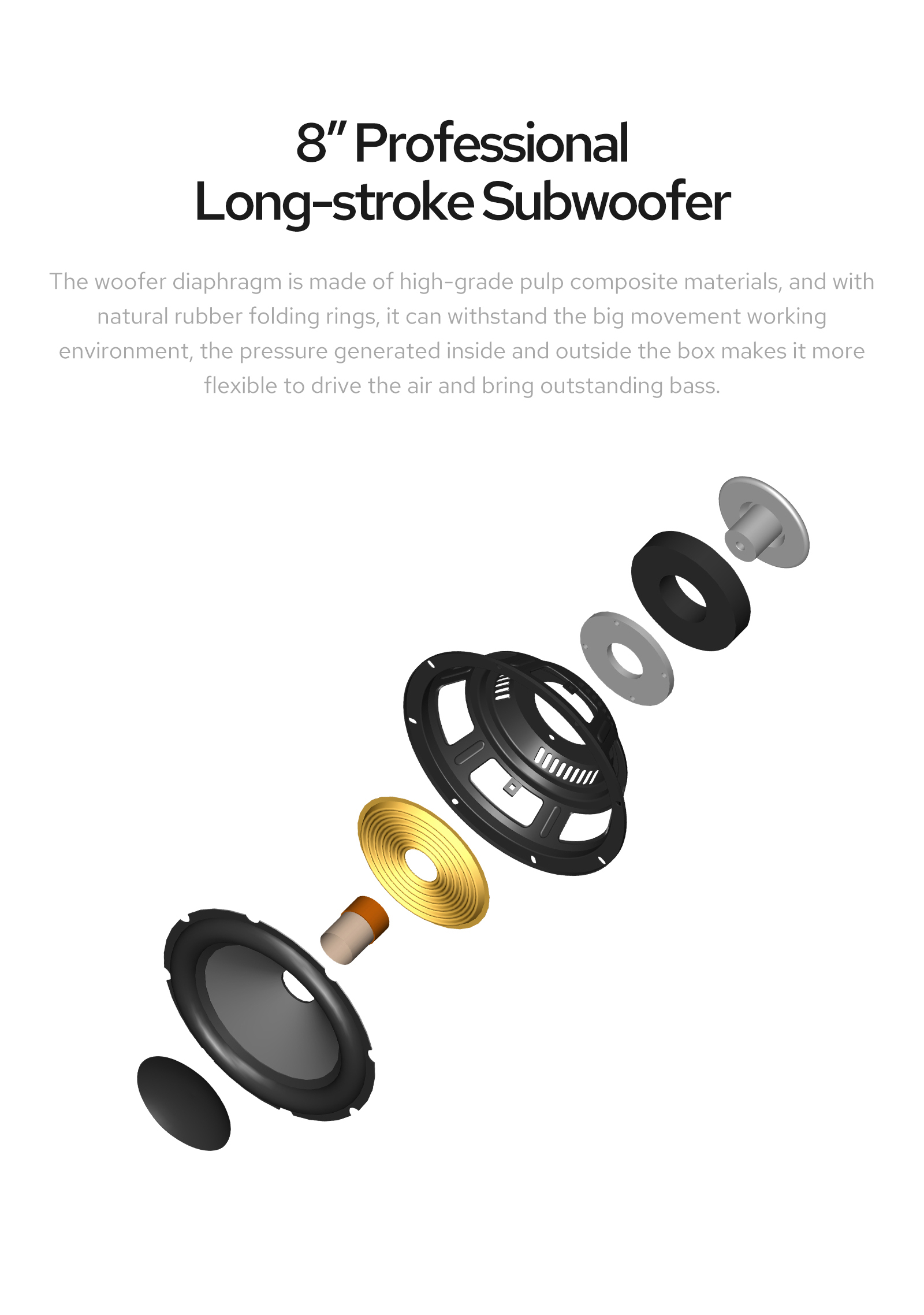

| Speaker configuration | 8.'' subwoofer |
| Rated power | 110W |
| Input sensitivity | 200mV |
| Frequency range | 38Hz-200Hz |
| Input impedance | 22kΩ |
| SNR | >98dB(unweighted) |
| N.W. | 9.5kg |
| Product size | 330×369×322mm(W×D×H) |
