Kit Features:

● DIY C6.1 bookshelf box adopts three-way four-order inverted speaker system, which is exquisite and beautiful in appearance and easy to make.

● The subwoofer adopts Hivi's high-quality C8 unit speaker. The unit is made of a diaphragm made of carbon fiber, bulletproof fiber and other excellent acoustic materials. The ultra-light fiber material is used to expand the performance of the diaphragm and obtain a wider and flat frequency response curve. The optimized Small/Thiele parameter design greatly improves the low-frequency sound pressure output of the unit, and at the same time reduces the distortion degree under loud pressure, providing a solid guarantee for the high-fidelity music reproduction of the bass unit with high dynamic low frequency.

● The midrange adopts natural fiber woven special damping coating dome diaphragm, the sound quality is natural, accurate and transparent. The high-power 75mm high-temperature-resistant CCAW wire and the high-temperature-resistant aluminum voice coil frame have high power bearing capacity. The new low-distortion guide The phase resonance structure design reduces the Q value of the unit resonance peak, reduces distortion, and maximizes the low frequency response, covering the complete mid-range to express the fundamental tone of vocals and stringed instruments, which can greatly improve the expressiveness and texture of vocals and musical instruments .

● The tweeter adopts the classic 28mm German soft dome sound diaphragm, specially formulated damping glue coating, high temperature-resistant aluminum alloy frame with CCAW wire, and Ferrosound liquid magnetic cooling to provide linear power and effective heat dissipation for the voice coil suspended in it. It restores the sound more delicate and transparent.

● The cabinet adopts the inverted design, and the low frequency is more prominent.

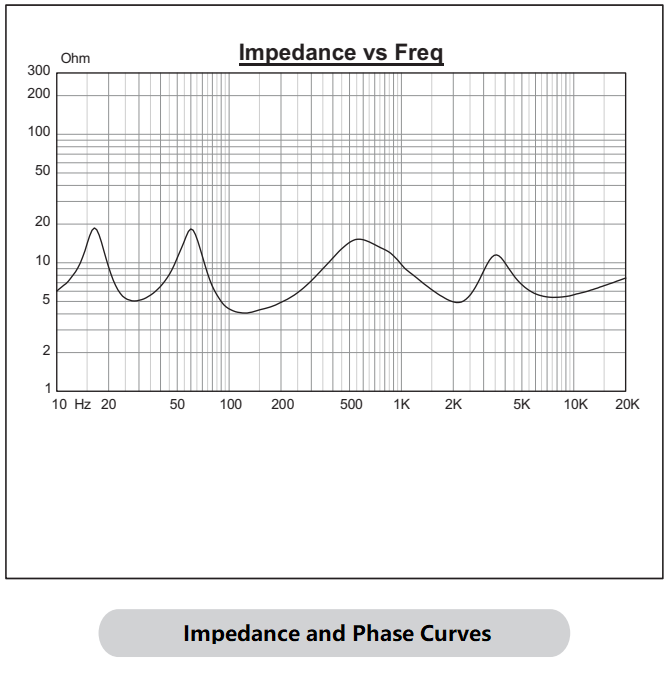

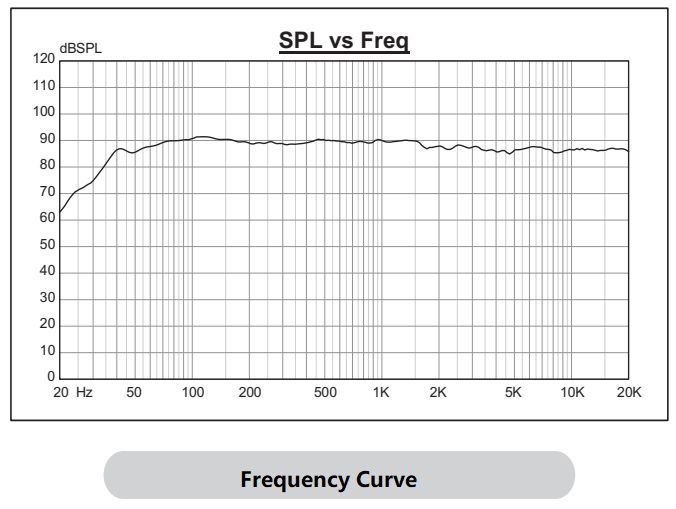

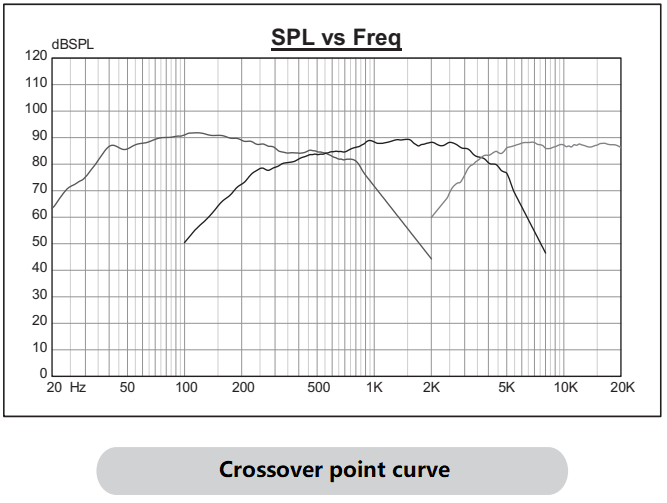

● Precise frequency divider design, accurate audio and video focusing, high-grade components are used on the circuit board, and the distortion is small. The flat frequency response curve, the sound performance is otherworldly, and the balance is very good.

● Adhering to the parameter optimization design that Swans has always insisted on, it fully expresses accurate imaging, wide sound range and amazing dynamics.

Kit List:

Woofer: C8 4PCS

Tweeter: Q4B 2PCS

Speaker surface mesh plug-in: 8 sets

Speaker sign: 2PCS

Inverter tube: 2PCS

Crossover: 2PCS

Kit Instructions: 1PCS

Warranty Card: 1PCS

Midrange unit: DM-7500 2PCS

Screw: 54PCS

Inside the speaker is connected to a high-current speaker wire: 1

Junction Box: 2PCS

Sound-absorbing cotton: 1 piece

Cushion: 8PCS

Certificate: 1PCS

Notice:

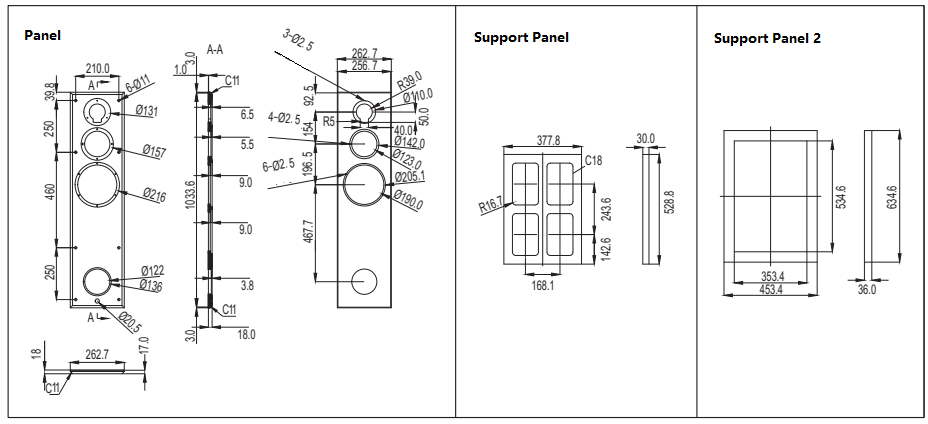

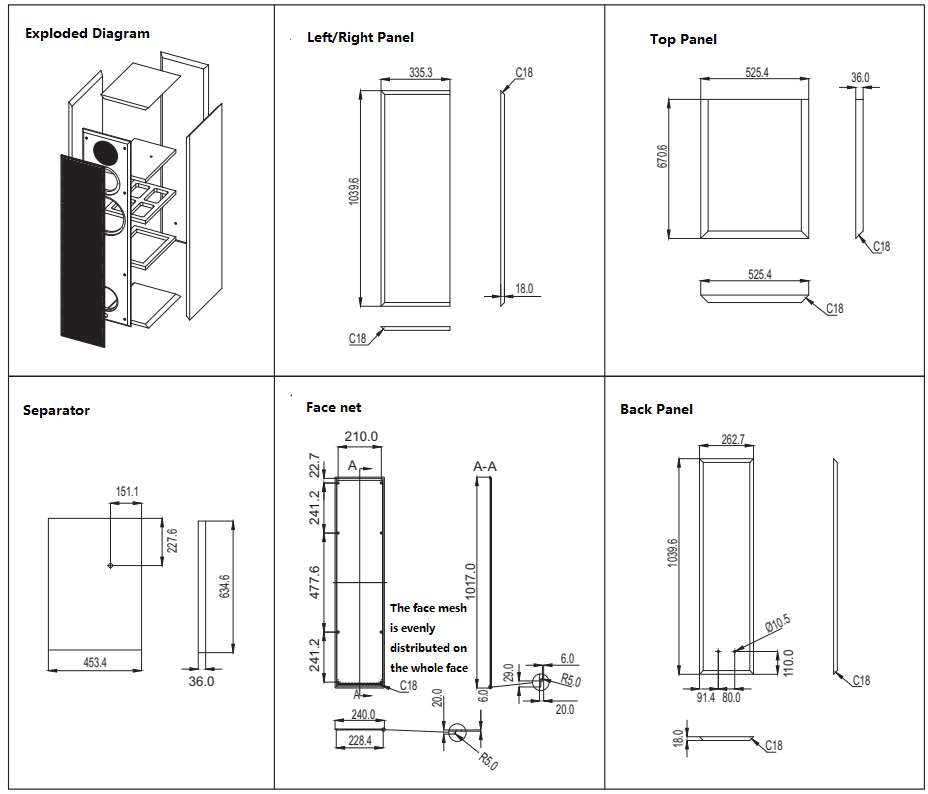

If the drawings given in the kit are different from those published in the advertisement, please refer to the drawings in the kit;

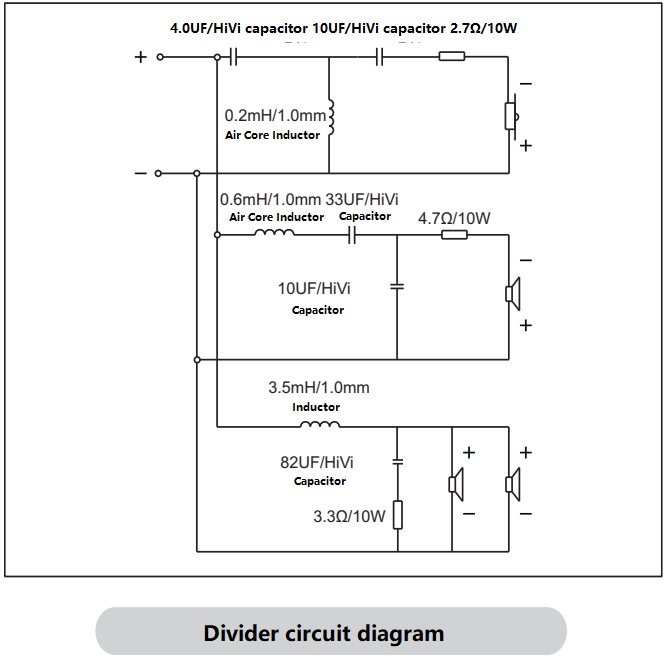

Step 2: Install the Crossover

Notice:

1. Compare the corresponding length to intercept the fever wire and the welding divider connection in the box;

2. The welding polarity must be correct;

(The red line of the general fever line or the word is the positive pole, and the silver-white line or no word is the negative pole.)

3. Install the frequency divider on the rear box panel (or side panel) opposite the opening of the corresponding unit, and pay attention to adding a square buffer.

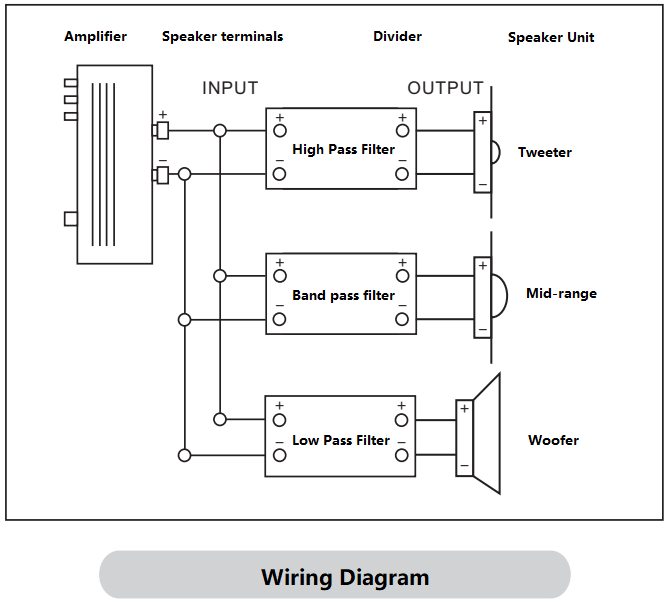

Step 3: Install the Junction Box

a. Take out the junction box, turn it over to the back of the junction box, and you can see that there are four soldering lugs, marked with "+, -", divided into upper and lower groups.

b. Pass the "positive" and "negative" pole fever wires of the input end of the tweeter through the box board from the opening of the box junction box, and weld them to the "+, -" solder lugs of one group of the junction box respectively.

c. Pass the "positive" and "negative" pole fever wires of the input end of the bass crossover through the box board through the opening of the box junction box, and weld them to the "+, -" solder lugs of the other group of the junction box respectively.

d. Confirm that there is no short circuit or virtual welding between the wire ends and the solder tabs, and then fasten the junction box (gasket) to the box with screws. (Note that the terminal is upward, that is, "left negative, right positive".) Note: The high and low frequencies are designed as a group of inputs, and the upper and lower terminals of the junction box are connected by connecting pieces, so the input wire can be soldered on one of the upper and lower sets of solder pieces. .

Step 4: Fill with sound-absorbing cotton. The filling ratio is: 30%.

Step 5: Solder the internal wiring and install the speaker.

Notice:

a. The welding polarity must be correct. Generally speaking, the wiring terminals of the speaker unit have positive (+), negative (-) marks or different thicknesses. (The thick end with red is the positive electrode, and the thin end is colorless for the negative electrode.)

b. Buffer pads must be added to install the speakers and they must be leveled and pressed to prevent air leakage.

c. During installation, the mid-high frequency panel should be at the same level as the outer surface of the speaker, so that a flat mid-high frequency sound pressure curve can be obtained.
